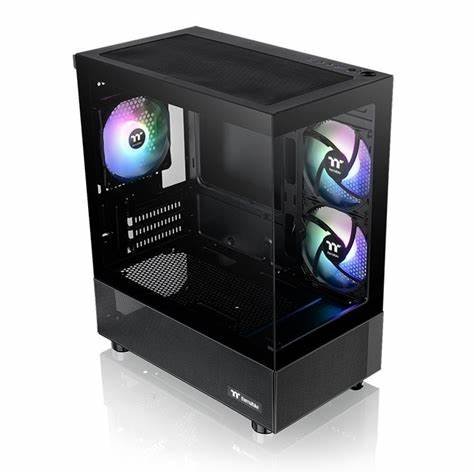

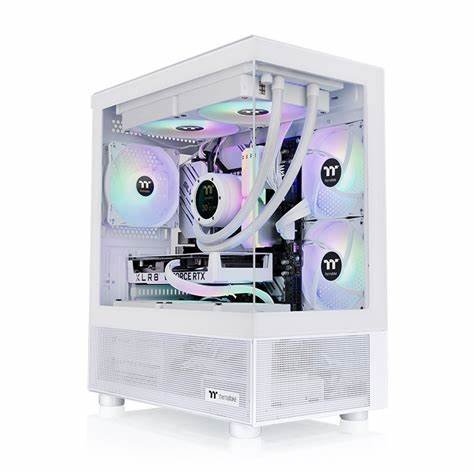

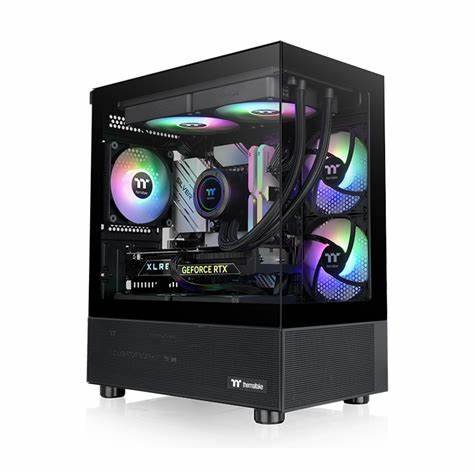

Thermaltake View 170 TG ARGB Micro Gaming Case
The Thermaltake View 170 TG ARGB Micro Chassis is a compact yet versatile micro-ATX case designed for builders seeking a balance between aesthetics and functionality.
Features
Tempered Glass Panels: The front and left panels are made of 3mm tempered glass, providing a clear view of your system’s components and lighting effects.
Pre-Installed ARGB Fans: Includes three 120mm ARGB Lite fans (two intake fans on the motherboard side and one exhaust fan at the rear) with hydraulic bearings, offering customizable lighting synchronized with motherboard RGB software from ASUS, GIGABYTE, MSI, and ASRock.
Efficient Cooling Support: Accommodates up to seven 120mm fans or up to a 280mm radiator on the top, ensuring optimal airflow for high-performance components.
Hardware Compatibility: Supports CPU coolers up to 160mm in height, graphics cards up to 340mm in length, and power supplies up to 180mm in length, providing flexibility for various builds.
Specifications
| Specification | Details |
|---|---|
| Dimensions (H x W x D) | 438 x 212 x 377.5 mm (17.24 x 8.35 x 14.86 inches) |
| Material | SPCC (Steel), 3mm Tempered Glass |
| Motherboard Support | Micro ATX, Mini ITX |
| Drive Bays | – 1 x 3.5″ HDD – 2 x 2.5″ SSD |
| Expansion Slots | 4 |
| Maximum GPU Length | 340 mm |
| Maximum CPU Cooler Height | 160 mm |
| Maximum PSU Length | 180 mm |
| Front I/O Ports | – 2 x USB 3.0 – 1 x HD Audio |
| Fan Support | – Top: 2 x 120mm or 2 x 140mm – Right (M/B Side): 2 x 120mm – Rear: 1 x 120mm – PSU Cover: 2 x 120mm |
| Radiator Support | – Top: Up to 280mm – Rear: Up to 120mm |
