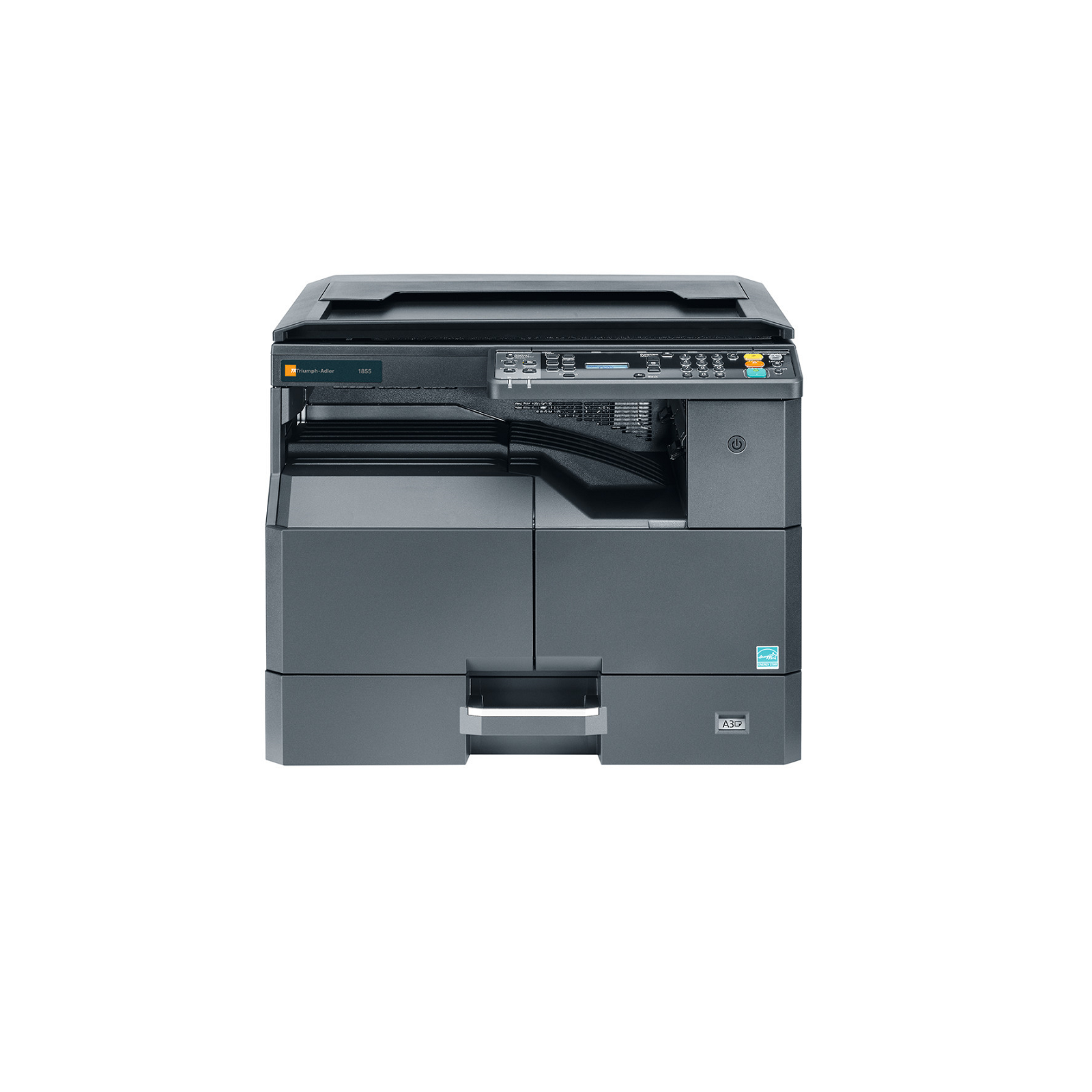

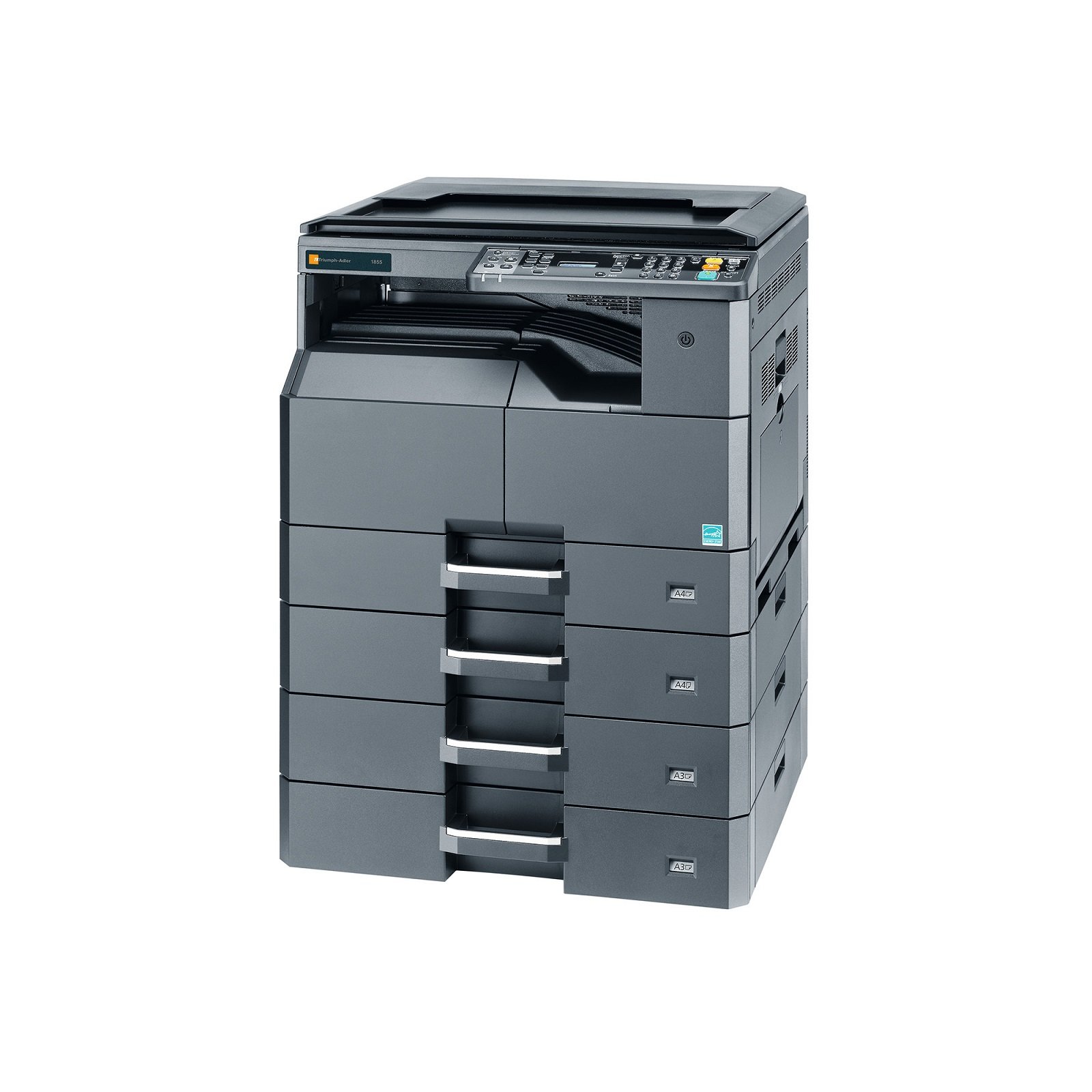

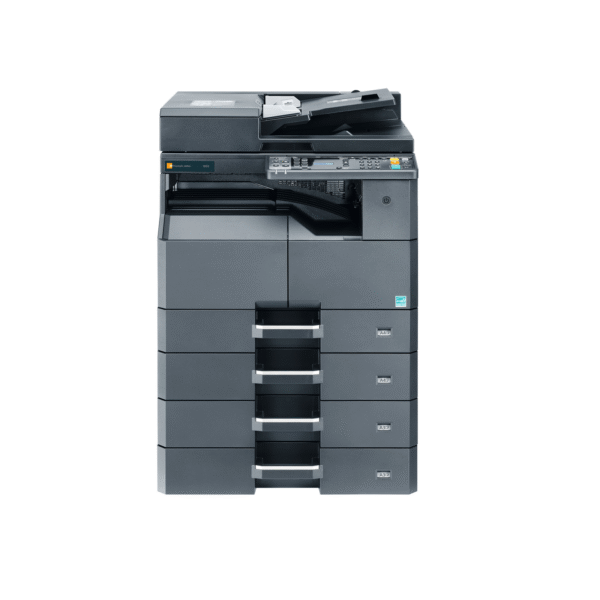

The Triumph-Adler 1855 is a monochrome multifunction printer (MFP) designed for small to medium-sized office environments. This compact A3 model offers essential functions such as copying, printing via GDI (Graphics Device Interface), and color scanning. It’s particularly suitable for teams requiring reliable document handling without the need for high-volume output.

FEATURES

Printing & Copying

• Print Speed: Up to 18 pages per minute (ppm)
• Print Resolution: 600 x 600 dpi
• Print Method: Electrophotography by semiconductor laser, single drum system
• Paper Handling:
  • Cassette: 300 sheets (80 g/m²)
  • Multi-Purpose Tray: 100 sheets (A4/Letter or less), 25 sheets (more than A4/Letter)
  • Output Tray: 250 sheets (80 g/m²)
• Supported Paper Sizes:
  • Cassette: A3, B4, A4, A4-R, B5, B5-R, A5-R, Ledger, Legal, Oficio II, Letter-R, Letter, Statement-R, Folio, 8K, 16K, 16K-R, 216 × 340 mm
  • Multi-Purpose Tray: A3, B4, A4, A4-R, B5, B5 (ISO), B5-R, A5-R, B6-R, A6-R, Oufukuhagaki, Hagaki, Envelope DL, Envelope C5, Envelope C4, Envelope #10, Envelope #9, Envelope #6 3/4, Envelope Monarch, Youkei 2, Youkei 4, Ledger, Legal, Oficio II, Letter, Letter-R, Statement-R, Executive, Folio, 216 × 340 mm, 8K, 16K, 16K-R, Size Entry (Metric: X; 148 to 432 mm (in 1 mm increments), Y; 98 to 297 mm (in 1 mm increments), Inch: X; 5.83 to 17.00″ (in 0.01″ increments), Y; 3.86 to 11.69″ (in 0.01″ increments))

Scanning

• Type: Color scanning
• Resolution:
  • Black & White: 600 dpi, 400 dpi, 300 dpi, 200 dpi
  • Color: 300 dpi, 200 dpi
• File Formats: TIFF (MMR/JPEG compression), PDF (MMR/JPEG compression/high compression), JPEG, BMP
• Scanning Speed:
  • 1-sided:
    • Black & White: 22 images/min
    • Grayscale: 14 images/min
    • Color: 14 images/min
  • 2-sided:
    • Black & White: 8 images/min
    • Grayscale: 6 images/min
    • Color: 6 images/min
• Original Feed Method: Automatic feed
• Supported Original Types: Sheet originals
• Paper Size:
  • Maximum: Ledger/A3
  • Minimum: Statement-R/A5-R
• Paper Weight:
  • 1-sided: 45 to 120 g/m²
  • 2-sided: 50 to 120 g/m²
• Loading Capacity: 50 sheets (50 to 80 g/m²) maximum; when originals have different widths: 30 sheets (50 to 80 g/m²) maximum

Display & User Interface

• LCD Display: 2-line LCD for basic navigation
• Management Codes: Supports up to 10 management codes and 10 print boxes for job management

Connectivity

• Interface: USB Interface Connector: 1 (USB Hi-Speed)

Physical Specifications

• Dimensions (W × D × H): 565 × 527 × 485 mm
• Weight: 25 kg or less
• Operating Environment:
  • Temperature: 10 to 32.5°C
  • Humidity: 15 to 80%
  • Altitude: 3,500 m maximum
  • Brightness: 1,500 lux maximum

SPECIFICATIONS

• Print Speed: Up to 18 pages per minute (ppm)
• Print Resolution: 600 x 600 dpi
• Paper Handling:
  • Standard paper size: A3
  • Multiple paper trays for flexible media handling
• Display: 2-line LCD for basic navigation
• Connectivity: GDI printing interface
• Scanning: Color scanning capability
• Security Features: Supports up to 10 management codes and 10 print boxes for job management
• Duty Cycle: Approximately 30,000 pages per month

Consumables and Maintenance

• Toner Cartridge: The printer uses the Triumph-Adler CK-4510 toner cartridge, which yields approximately 15,000 pages. This cartridge is compatible with both Triumph-Adler and UTAX 1855/2256 models. It is available for purchase from suppliers like SkyrockUAE.

• Copy Kit: The CK-4510 copy kit is essential for maintaining print quality and is recommended to be replaced periodically. It is available through various suppliers.
