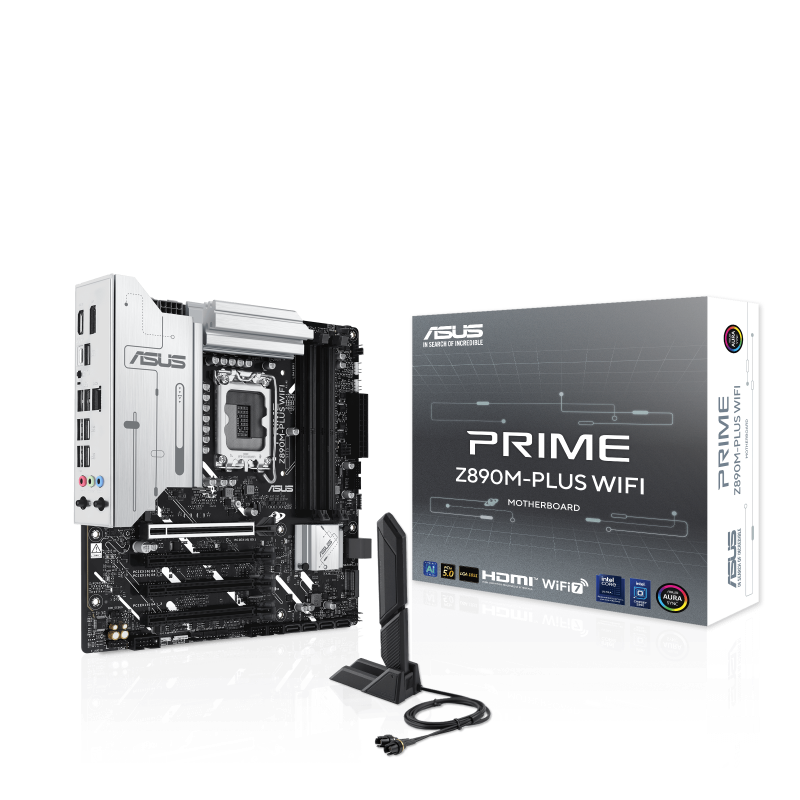

ASUS PRIME Z890M-PLUS WIFI Motherboard
The ASUS PRIME Z890M-PLUS WIFI represents the next evolution of the PRIME series, built to power the latest Intel® Core™ Ultra Processors (Series 2) with intelligent performance tuning and robust reliability. Featuring a 10(80A) + 1(80A) + 2(80A) + 1(80A) power stage design, advanced VRM cooling, and a six-layer PCB, it ensures stable power delivery even under heavy workloads.
AI-powered utilities such as AI Advisor, AI Cooling II, and AI Networking II provide intuitive control for optimal performance, network management, and thermal regulation. The motherboard supports DDR5 memory up to 8666+ MT/s with ASUS Enhanced Memory Profile III (AEMP III) and DIMM Fit Pro for precise tuning.
Connectivity shines with WiFi 7, Realtek 2.5Gb Ethernet, USB 20Gbps Type-C®, and PCIe 5.0 expansion slots, ensuring blazing-fast data speeds and seamless multi-device integration. Additional DIY-friendly features like Q-Antenna, Pre-mounted I/O shield, BIOS FlashBack™, and SafeSlot enhance the overall building experience.
With Aura Sync RGB control, comprehensive software suite, and AI-driven performance enhancements, the ASUS PRIME Z890M-PLUS WIFI is designed to deliver exceptional flexibility, reliability, and power for creators, gamers, and professionals alike.
Features
Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 socket
Advanced AI Solutions: AI Advisor, AI Cooling II, and AI Networking II
10(80A) + 1(80A) + 2(80A) + 1(80A) power stages for stable power delivery
AEMP III & DIMM Fit Pro for superior DDR5 overclocking and tuning
Three M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x4) + six SATA 6Gb/s ports
WiFi 7 and 2.5Gb Ethernet for ultra-fast, low-latency connectivity
USB 20Gbps Type-C® with DisplayPort Alt Mode
Aura Sync RGB with Addressable Gen 2 headers for personalized lighting
EZ PC DIY features: Q-Antenna, BIOS FlashBack™, SafeSlot, and pre-mounted I/O shield
Compact micro-ATX form factor for versatile builds
Specifications
| Categories | Details |
|---|---|
| Model | ASUS PRIME Z890M-PLUS WIFI |
| CPU Support | Intel® Core™ Ultra Processors (Series 2), LGA1851 |
| Chipset | Intel® Z890 |
| Power Design | 10(80A) + 1(80A) + 2(80A) + 1(80A) power stages |
| Memory | 4× DDR5 DIMM slots, up to 256GB, dual-channel, 8666+ MT/s (OC), AEMP III, DIMM Fit Pro |
| Expansion Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x16 (x4 mode), 2× PCIe 4.0 x16 (x1 mode) |
| Storage | 3× M.2 slots (PCIe 5.0/4.0 x4), 6× SATA 6Gb/s ports |
| Networking | 1× Realtek 2.5Gb Ethernet, WiFi 7 (802.11be), Bluetooth® v5.4 |
| USB Ports (Rear) | 1× USB 20Gbps Type-C®, 1× USB 10Gbps Type-A, 4× USB 5Gbps Type-A, 2× USB 2.0 Type-A |
| USB Ports (Front) | 1× USB 5Gbps Type-C®, 1× USB 5Gbps header (2 ports), 2× USB 2.0 headers (4 ports) |
| Graphics Output | 1× DisplayPort 1.4 (4K@60Hz), 1× HDMI 2.1 (4K@60Hz), 1× USB-C® DP Alt Mode (4K@120Hz) |
| Audio | Realtek 7.1 Surround HD Audio Codec, 24-bit/192kHz playback |
| Cooling Headers | 1× CPU Fan, 1× CPU OPT Fan, 1× AIO Pump, 4× Chassis Fan headers |
| Internal I/O | 3× M.2 slots, 6× SATA ports, RGB + ARGB headers, TPM, COM, SPDIF, Thunderbolt header |
| Special Features | AI Solutions Suite, Armoury Crate, Fan Xpert 4, NPU Boost, Power Saving, Q-Design, EZ Flash, BIOS FlashBack™ |
| Form Factor | mATX (24.4 cm × 24.4 cm) |
| Operating System | Windows 11 (22H2 & later) |
| Accessories | 2× SATA cables, 1× WiFi Q-Antenna, 3× M.2 screw packages, Quick start guide |
