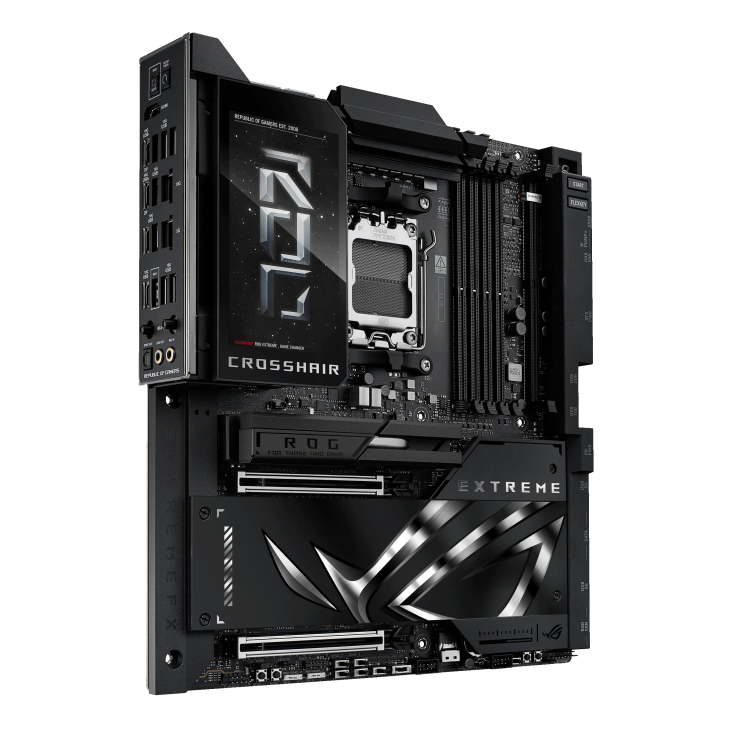

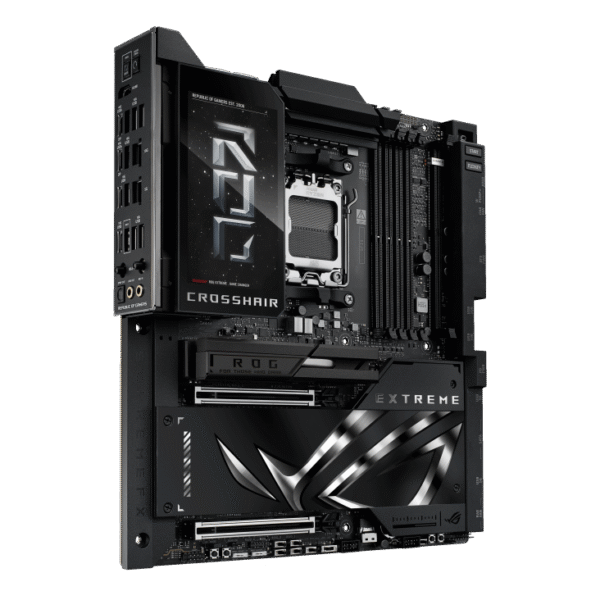

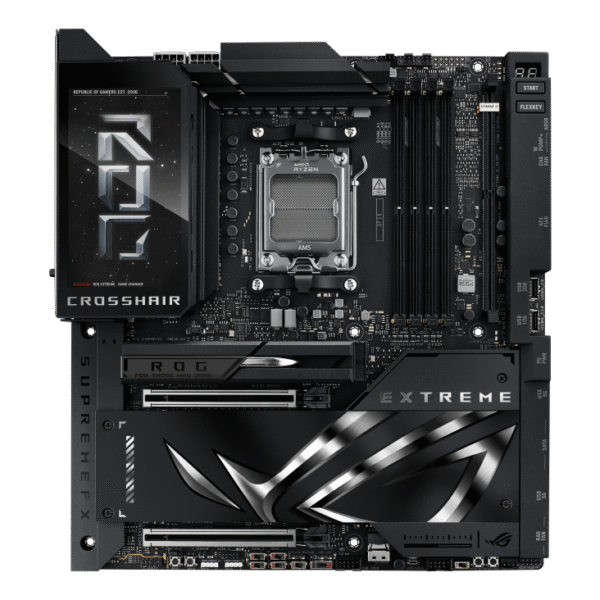

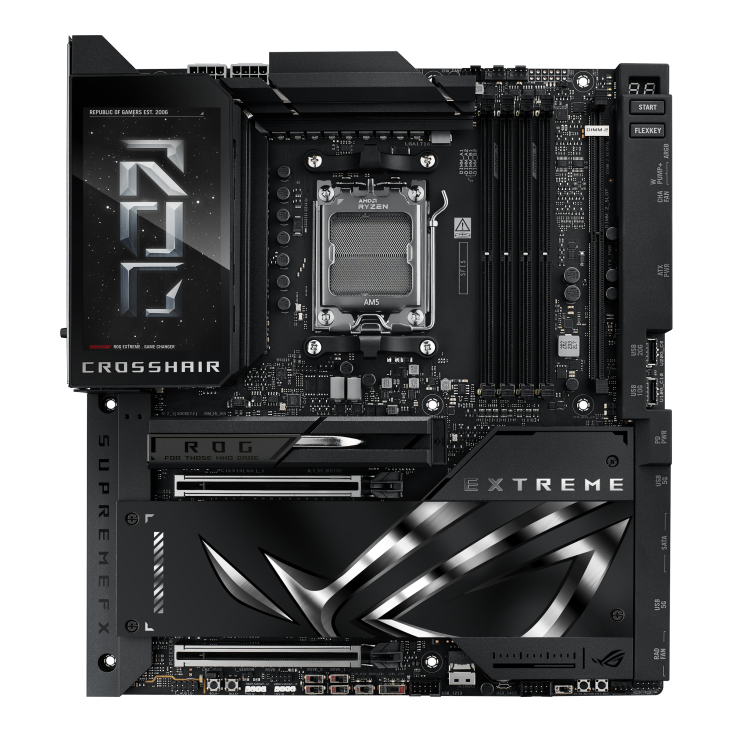

ROG Crosshair X870E Extreme – Extreme Power & Intelligence
The ROG Crosshair X870E Extreme delivers the ultimate fusion of power, speed, and control. Built for next-gen AMD Ryzen™ processors, it boasts a massive 20+2+2 power stage design, dual ProCool II connectors, and advanced cooling solutions to push your system beyond limits. With DDR5 support up to 8600+ MT/s, five M.2 slots including PCIe 5.0, and AI-enhanced performance tools like AI Cache Boost, AI Overclocking, AI Cooling II, and AI Networking II, this motherboard ensures unmatched efficiency and responsiveness.
Its extensive connectivity includes dual PCIe 5.0 x16 slots, dual USB4® Type-C ports, Wi-Fi 7, 5 GbE & 10 GbE LAN, plus immersive SupremeFX audio with Dolby Atmos. Personalization reaches new heights with a full-color 5-inch LCD display, Aura Sync lighting, and ROG-exclusive DIY-friendly features like M.2 Q-Release and Q-DIMM. Engineered for overclockers, professionals, and enthusiasts, the X870E Extreme is the pinnacle of ASUS ROG engineering.
Features
AMD AM5 socket supporting Ryzen™ 9000, 8000 & 7000 Series CPUs
20(110A)+2(110A)+2(80A) robust power stages with dual ProCool II connectors
DDR5 memory support up to 8600+ MT/s, 4 DIMM, max. 256GB, Dual Channel
5 x M.2 slots (PCIe 5.0 & 4.0) + 4 SATA ports + SlimSAS support
Dual PCIe 5.0 x16 slots with Q-Release Slim design
ASUS AI suite: AI Cache Boost, AI Advisor, AI Overclocking, AI Cooling II, AI Networking II
Dynamic OC Switcher, Core Flex & Asynchronous Clock for extreme overclocking
Dual USB4® Type-C®, USB 20Gbps & 10Gbps connectors for future-proof connectivity
Wi-Fi 7, Bluetooth v5.4, Realtek 5GbE & Marvell 10GbE Ethernet
SupremeFX audio with ESS® QUAD DAC & Dolby Atmos support
Extensive ROG Q-Design: Q-Release, Q-DIMM, Q-LED, Q-Code, M.2 Q-Latch, BIOS FlashBack™, Clear CMOS
Full-color 5-inch LCD display for system monitoring & personalization
Armoury Crate, ASUS DriverHub, Dolby Atmos, AIDA64 Extreme support
Sustainable packaging with FSC-certified materials
Specifications
| Categories | Details |
|---|---|
| Model | ROG Crosshair X870E Extreme |
| Form Factor | E-ATX (30.5 cm x 27.7 cm) |
| CPU Support | AMD Socket AM5: Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset | AMD X870E |
| Power Stages | 20(110A)+2(110A)+2(80A), ProCool II connectors |
| Memory | 4 x DIMM DDR5, up to 256GB, Dual Channel |
| Memory Speed | 8200+ MT/s (Ryzen 9000), 9000+ MT/s (Ryzen 8000), 8000+ MT/s (Ryzen 7000), ECC & Non-ECC |
| Storage | 5 x M.2 slots (PCIe 5.0/4.0), 4 x SATA 6Gb/s, SlimSAS |
| Expansion Slots | 2 x PCIe 5.0 x16 with Q-Release Slim |
| Networking | 1 x Realtek 5GbE, 1 x Marvell 10GbE, Wi-Fi 7 (2×2), Bluetooth v5.4 |

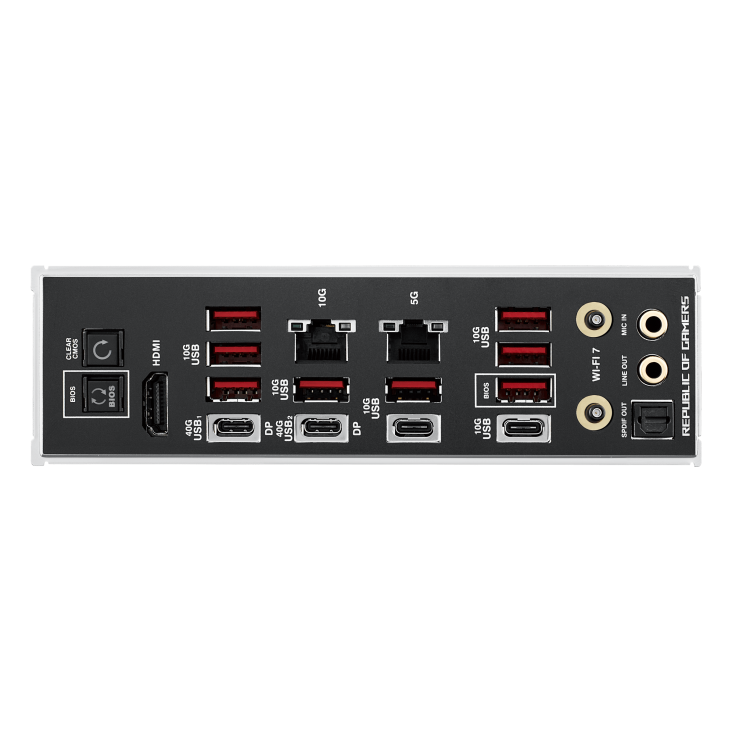

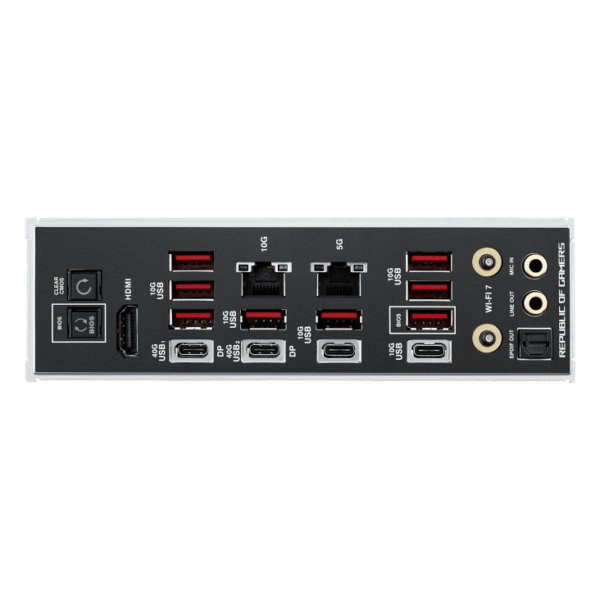

| USB (Rear I/O) | 2 x USB4 (40Gbps), 10 x USB 10Gbps (Type-A & Type-C) |
| USB (Front Panel) | 1 x USB 20Gbps Type-C (60W PD), 1 x USB 10Gbps Type-C, headers for USB 5Gbps & USB 2.0 |
| Display Outputs | 1 x HDMI 2.1, 2 x USB4® Type-C® (DP 1.4a, 4K@60Hz) |
| Audio | ROG SupremeFX 7.1, ALC4082, ESS® ES9219 Quad DAC, Dolby Atmos |
| Cooling | Multiple fan headers, AIO pump, VRM heatsink, 3D VC M.2 heatsink |
| Special Features | AI Overclocking, AI Cache Boost, AI Cooling II, AI Networking II, Dynamic OC Switcher, Core Flex, NitroPath DRAM, DIMM Fit, Q-Design suite, Dual BIOS |
| Personalization | Full-color 5” LCD Display, Aura Sync RGB |
| Software | Armoury Crate, ASUS DriverHub, AIDA64 Extreme (1 year), Dolby Atmos, GlideX, AI Advisor |
| Accessories | ROG DIMM.2 with heatsink, WiFi Q-Antenna, fan kits, ARGB splitters, cables, screwdriver, stickers, USB drive with drivers |
| OS Support | Windows 11 |
| Dimensions | 12 x 10.9 inches (30.5 cm x 27.7 cm) |
