ROG STRIX B650E-F GAMING WiFi ATX Motherboard
The ASUS ROG STRIX B650E-F GAMING WiFi is a next-generation gaming motherboard engineered to unleash the full potential of AMD Ryzen™ 9000, 8000, and 7000 desktop processors. Featuring 12+2+1 power stages rated at 80A, PCIe® 5.0 readiness, and DDR5 memory support up to 8000+ MT/s (OC), it offers unmatched stability and overclocking capabilities for serious gamers and power users.
With WiFi 6E support, Intel® 2.5Gb Ethernet, and USB 3.2 Gen 2×2 Type-C®, the Strix B650E-F ensures ultrafast networking and seamless data transfers. DIY-friendly innovations such as PCIe Q-Release, M.2 Q-Latch, BIOS FlashBack™, and SafeSlot make installation and upgrades easy, while Aura Sync RGB lighting enhances aesthetics with full customization options.
The motherboard also includes ROG-exclusive software utilities such as AI Networking, AI Noise Cancelation, and Armoury Crate, delivering optimized performance, audio clarity, and system control. With three M.2 slots (PCIe 5.0 + PCIe 4.0), comprehensive cooling solutions, and a stylish ROG design, the Strix B650E-F is built for high-speed gaming and advanced AI PC applications.
This platform is the ultimate choice for gamers, creators, and enthusiasts who want power, style, and next-level connectivity in one feature-packed ATX motherboard.
Features
-
AMD AM5 socket supporting Ryzen™ 9000 / 8000 / 7000 desktop processors
-
12+2+1 power stages rated for 80A per stage with Digi+ VRM
-
DDR5 support up to 8000+ MT/s (OC) with AMD EXPO™ & OptiMem II
-
PCIe® 5.0 x16 SafeSlot and PCIe® 5.0 M.2 slot with heatsink
-
3x M.2 slots (1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4) + 4 x SATA 6Gb/s
-
Intel® 2.5Gb Ethernet + WiFi 6E + Bluetooth 5.2
-
USB 3.2 Gen 2×2 Type-C®, multiple USB 3.2 Gen 2 / Gen 1 ports
-
DIY-friendly features: PCIe Q-Release, M.2 Q-Latch, BIOS FlashBack™, SafeDIMM
-
Aura Sync RGB with Addressable Gen 2 headers for full customization
-
SupremeFX ALC4080 7.1 surround sound audio with Savitech AMP
Specifications
| Categories | Details |
|---|---|
| Model | ROG STRIX B650E-F GAMING WiFi |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| CPU Support | AMD AM5 socket: Ryzen™ 9000, 8000, 7000 series |
| Chipset | AMD B650 |
| Power Design | 12+2+1 Power Stages (80A) with Digi+ VRM |
| Memory | 4 x DIMM, DDR5 up to 192GB, 8000+ MT/s (OC), Dual Channel, AMD EXPO™, OptiMem II |
| Expansion Slots | 1 x PCIe 5.0 x16 (SafeSlot), 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0 x1 |
| Storage | 3 x M.2 (1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4), 4 x SATA 6Gb/s, AMD RAID support |
| Networking | Intel® 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & BT | WiFi 6E, 2×2 antennas, Bluetooth v5.2 |
| USB (Rear I/O) | 1 x USB 3.2 Gen 2×2 Type-C®, 3 x USB 3.2 Gen 2 (2 x Type-A + 1 x Type-C®), 4 x USB 3.2 Gen 1, 4 x USB 2.0 |
| USB (Front Panel) | 1 x USB 3.2 Gen 2 Type-C®, 2 x USB 3.2 Gen 1, 4 x USB 2.0 (via headers) |
| Graphics Outputs | 1 x DisplayPort 1.4 (8K@60Hz), 1 x HDMI 2.1 (4K@60Hz) |
| Audio | SupremeFX ALC4080 7.1 Surround HD Audio, 32-bit/384kHz, Savitech SV3H712 AMP |
| Cooling | VRM & M.2 heatsinks, 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fan headers |
| RGB Headers | 1 x RGB, 3 x Addressable Gen 2 headers |
| Special Features | PCIe Q-Release, M.2 Q-Latch, BIOS FlashBack™, Q-LED, SafeSlot, SafeDIMM, Armoury Crate, AI Networking, AI Noise Cancelation |

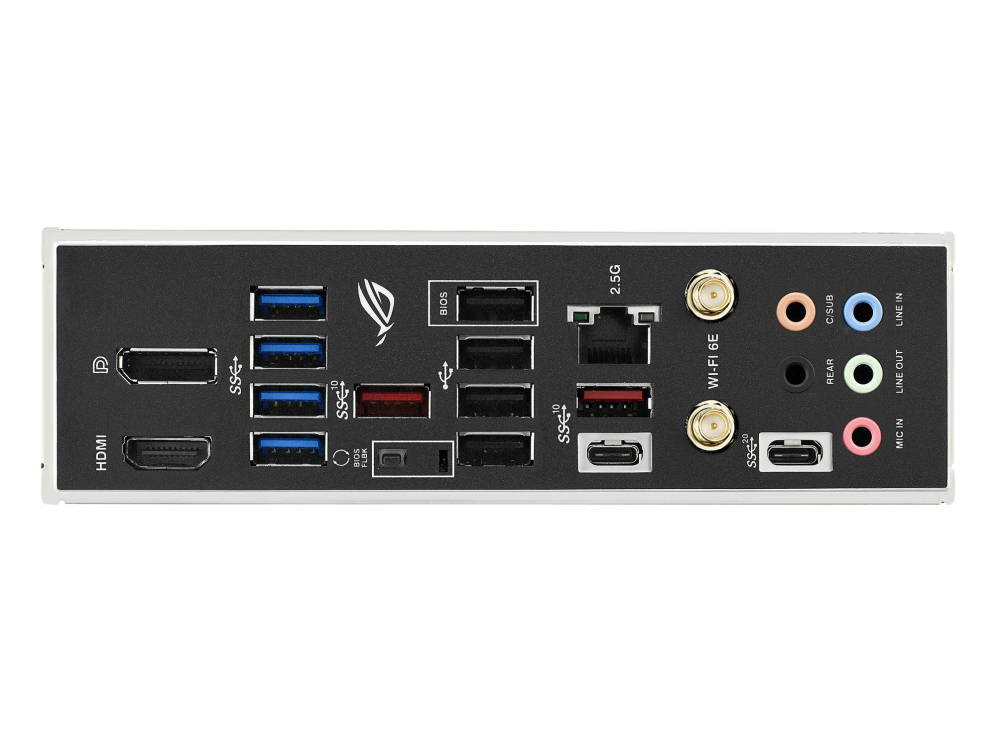

| Back Panel I/O | 12 x USB, HDMI, DisplayPort, WiFi 6E antenna, Intel® 2.5Gb LAN, 5 x audio jacks, BIOS FlashBack™ button |
| Accessories | 2 x SATA cables, WiFi antenna, M.2 Q-Latch, cable ties, ROG stickers, keychain, thank you card |
| OS Support | Windows 11, Windows 10 64-bit |
