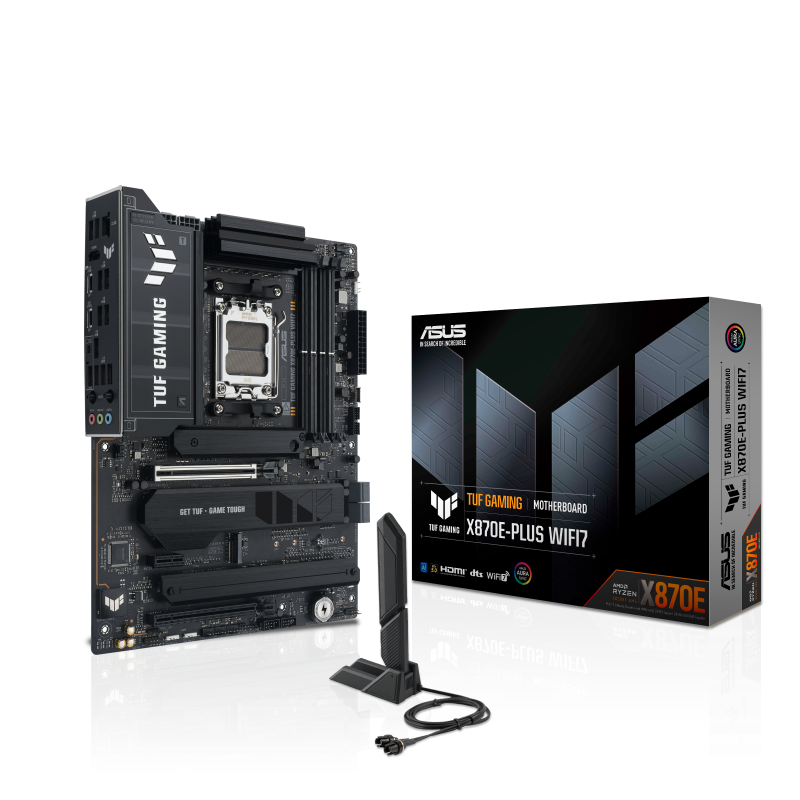

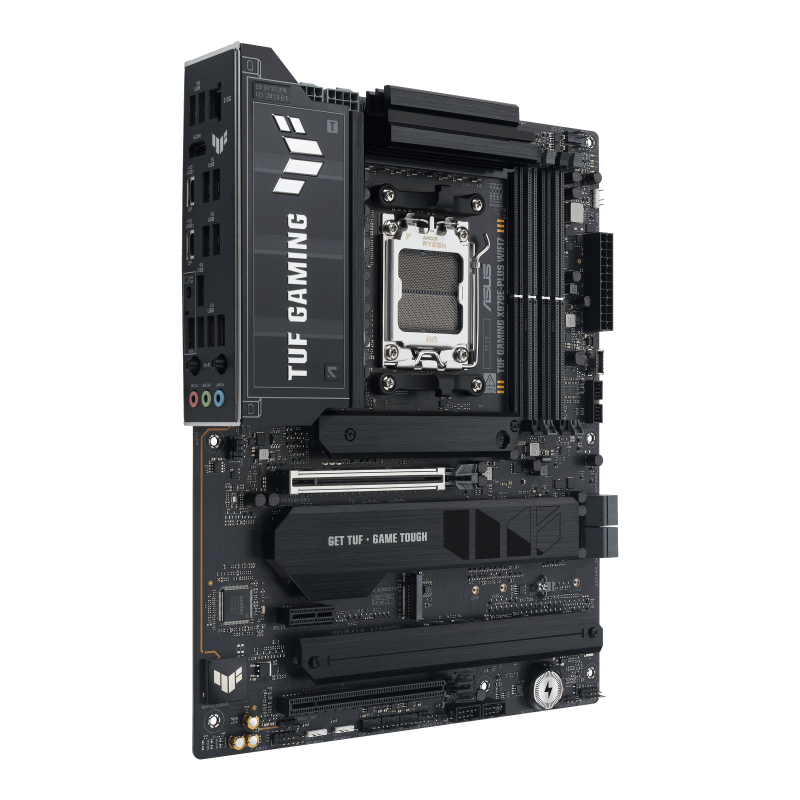

ASUS TUF GAMING X870E-PLUS WIFI7
Engineered for gamers and creators alike, the ASUS TUF GAMING X870E-PLUS WIFI7 is built to harness the full potential of AMD Ryzen™ 9000, 8000, and 7000 Series processors. Featuring 16+2+1 power stages, comprehensive cooling, and PCIe 5.0 support, it ensures rock-solid stability and peak performance. The integration of ASUS-exclusive AI technologies, such as AI Cache Boost, AI Overclocking, and AI Cooling II, provides smart optimization for performance, thermals, and connectivity.
This motherboard excels in durability with TUF military-grade components, enhanced VRM heatsinks, and a stainless-steel I/O shield. It supports DDR5 memory with speeds over 8000+ MT/s, multiple PCIe 5.0 M.2 slots, and ultrafast connectivity via USB4®, WiFi 7, and 2.5Gb Ethernet. With immersive DTS audio, Aura Sync RGB, and DIY-friendly features like Q-Release and BIOS FlashBack™, the TUF GAMING X870E-PLUS WIFI7 offers a robust, future-proof foundation for high-performance gaming rigs and advanced AI PC applications.
Features
-
Powerful VRM Design: 16+2+1 power stages (80A) with premium VRM heatsinks.
-
AI Solutions: AI Cache Boost, AI Advisor, AI Overclocking, AI Cooling II & AI Networking II.
-
DDR5 Performance: Supports 8000+ MT/s with AMD EXPO™ and AEMP memory profiles.
-
Overclocking Flexibility: Dynamic OC Switcher & Core Flex for adaptive CPU performance.
-
High-Speed Storage: 4 x M.2 slots including dual PCIe 5.0 x4 with heatsinks.
-
Next-Gen Connectivity: USB4® 40Gbps, USB 20Gbps Type-C® with PD fast charge, PCIe 5.0.
-
Networking: WiFi 7 with ASUS WiFi Q-Antenna and Realtek 2.5Gb Ethernet.
-
Audio Excellence: Realtek ALC1220P codec with DTS Audio Processing.
-
DIY Friendly: PCIe Q-Release Slim, Q-Antenna, Q-LED, Q-Dashboard, BIOS FlashBack™.
-
Durability & Protection: TUF chokes & capacitors, stainless-steel I/O, SafeSlot & SafeDIMM.
-
Aura Sync Lighting: Customizable RGB with Gen 2 ARGB headers.
-
Software Suite: Armoury Crate, ASUS AI Advisor, DriverHub, GlideX, DTS Audio Processing.
Specifications
| Categories | Details |
|---|---|
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, DDR5 up to 256GB, 8000+ MT/s (OC), Dual channel, AMD EXPO™, AEMP, DIMM Fit/Pro |
| Expansion Slots | 1 x PCIe 5.0 x16 SafeSlot, 1 x PCIe 4.0 x16 (x4), 1 x PCIe 3.0 x1 |
| Storage | 4 x M.2 slots (2 x PCIe 5.0, 2 x PCIe 4.0), 4 x SATA 6Gb/s |
| Networking | WiFi 7 (802.11be, 2×2, up to 2.9Gbps), Bluetooth® v5.4, Realtek 2.5Gb Ethernet, TUF LANGuard |

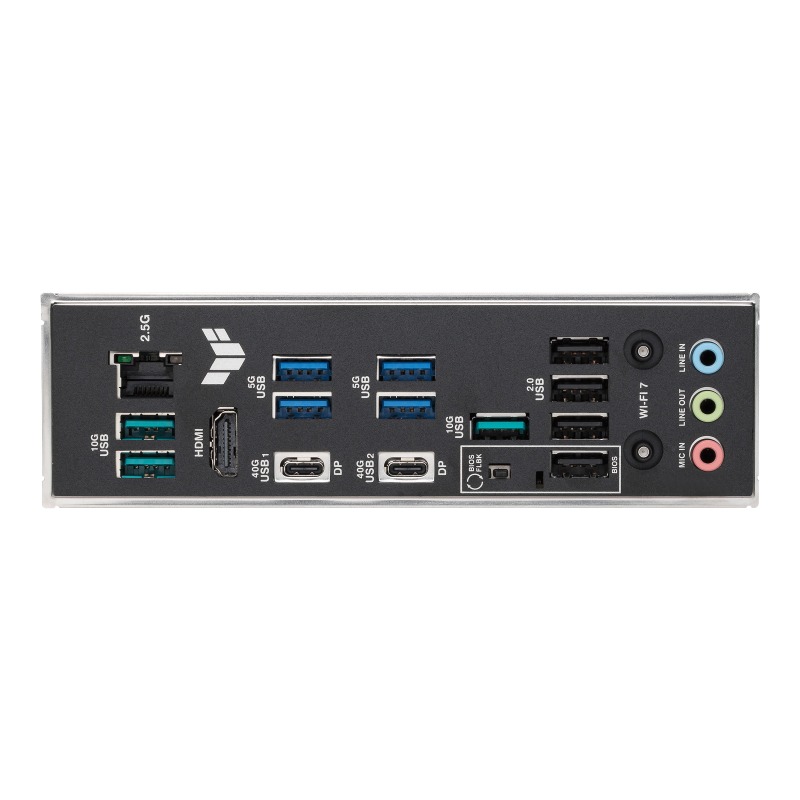

| USB (Rear) | 2 x USB4® 40Gbps Type-C®, 3 x USB 10Gbps (Type-A), 4 x USB 5Gbps (Type-A), 4 x USB 2.0 |
| USB (Front) | 1 x USB 20Gbps Type-C® (with 30W PD fast charge), 2 x USB 5Gbps, 4 x USB 2.0 |
| Audio | Realtek ALC1220P 7.1 Surround HD Audio, DTS Audio Processing, Premium capacitors |
| Cooling Headers | 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fans, 1 x Water Pump+ |
| Power Connectors | 24-pin ATX, 2 x 8-pin CPU ProCool connectors |
| DIY Features | PCIe Q-Release Slim, M.2 Q-Latch, Q-Antenna, Q-LED, BIOS FlashBack™, SafeSlot & SafeDIMM |
| Protection | DIGI+ VRM, ESD Guards, TUF LANGuard, Stainless Steel I/O, Overvoltage protection |
| Lighting | Aura Sync RGB, 3 x Addressable Gen 2 headers |
| Form Factor | ATX, 30.5 cm x 24.4 cm |
| Accessories | 2 x SATA cables, WiFi Q-Antenna, M.2 screws & rubber kits, TUF Gaming sticker, Quick Start Guide |
