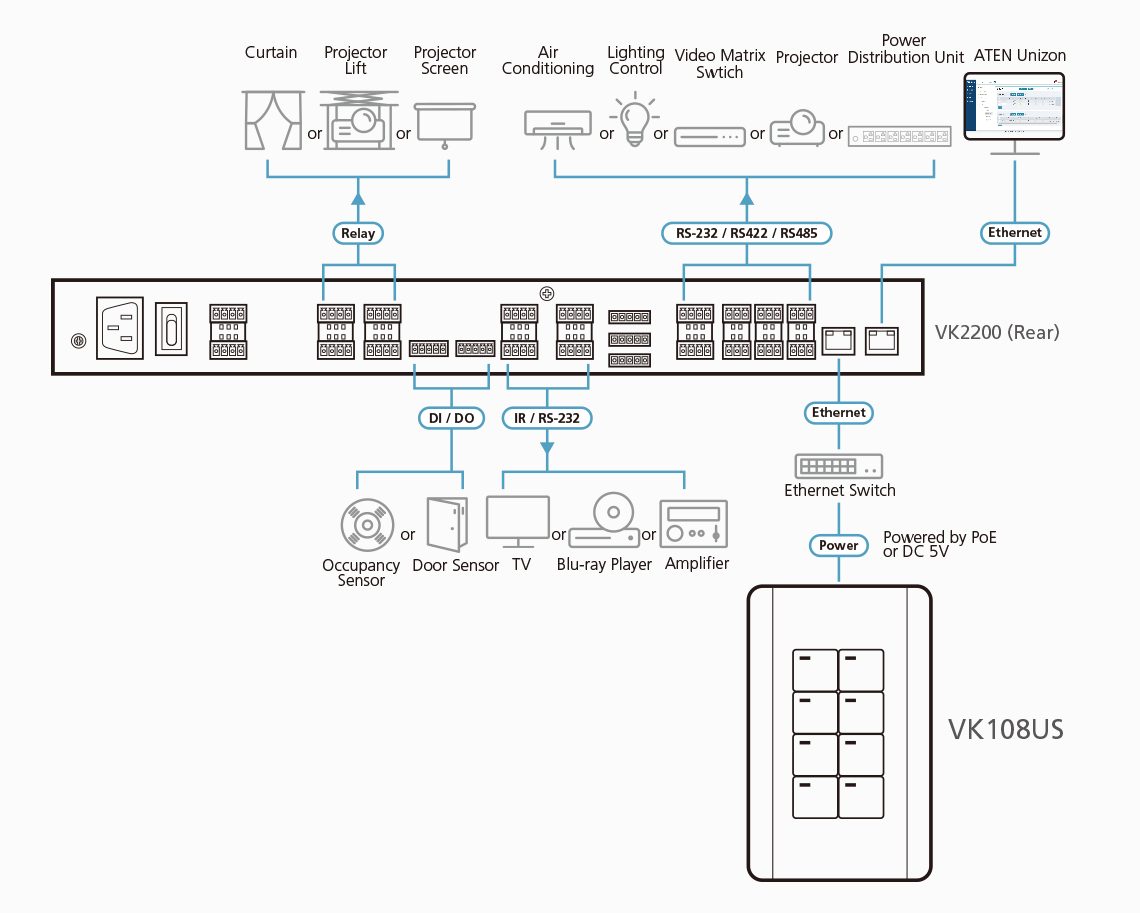

The VK108US is a fully-customizable 8-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind, the one-gang keypad can be laid out in 14 different combinations of 4 to 8 buttons that snap together as easy as Lego’s. By connecting to the VK2200 / VK1200 / VK2100A / VK1100A Control Box or VK0100 / VK0200 Control Pad over a LAN, users will find it’s effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the button’s ready to go, users have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK108US is an affordable solution, perfect to serve as the primary interface in small meeting rooms, or as secondary device control in classrooms and conference centers.
FEATURES
- Key pad – provides physical connection to the ATEN Control System

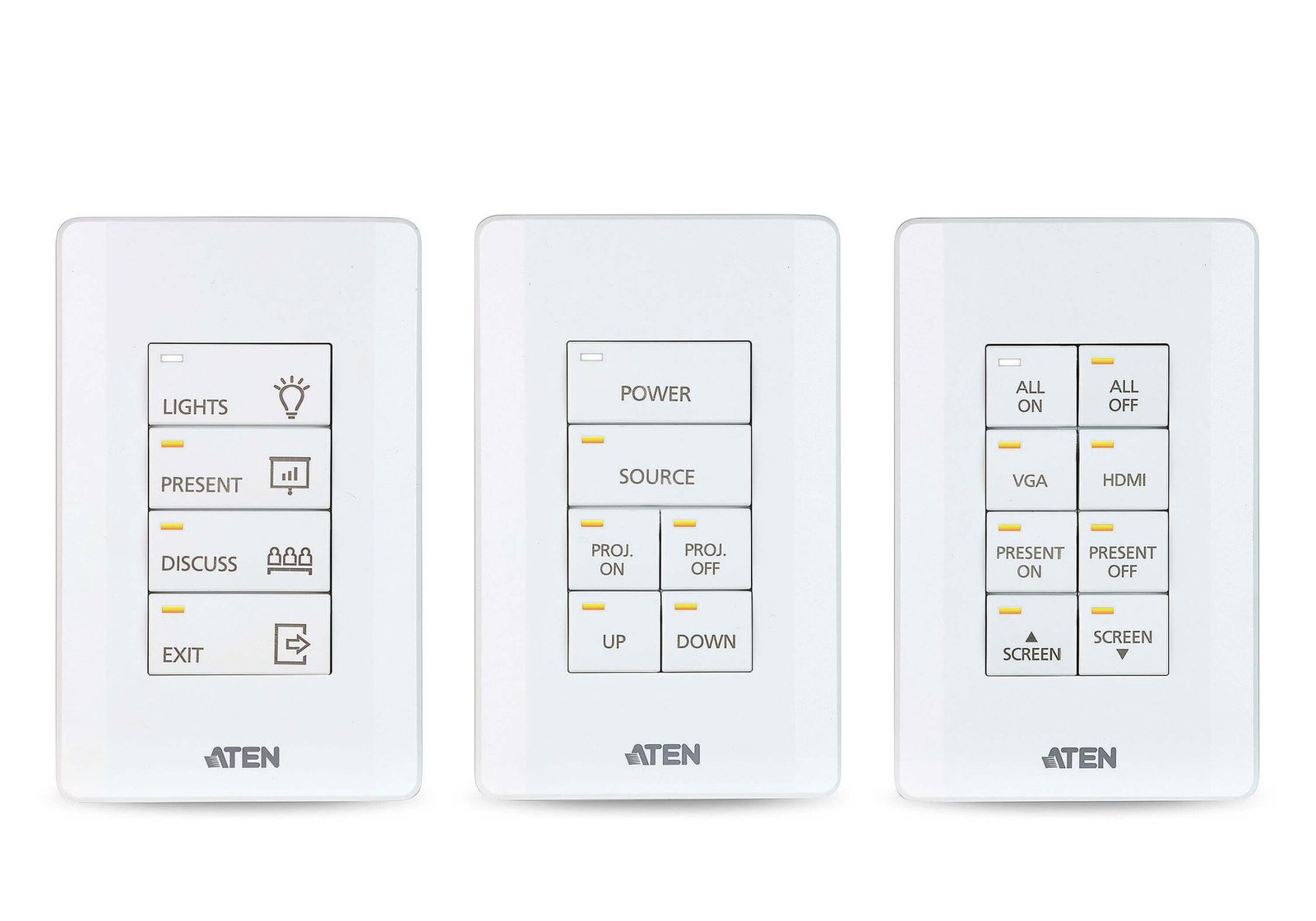

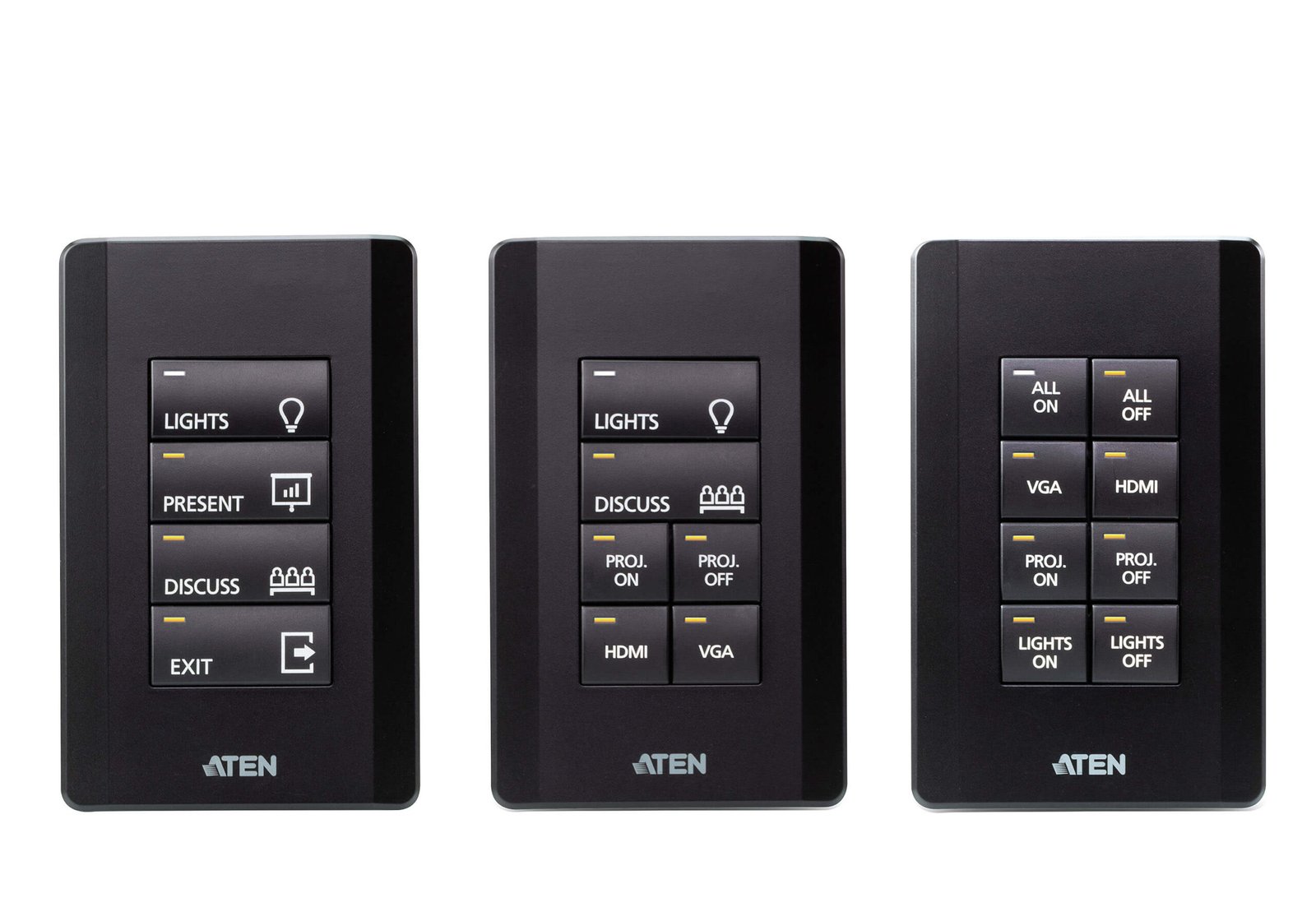

- Fully customizable with 14 layout combinations of 4 to 8 buttons

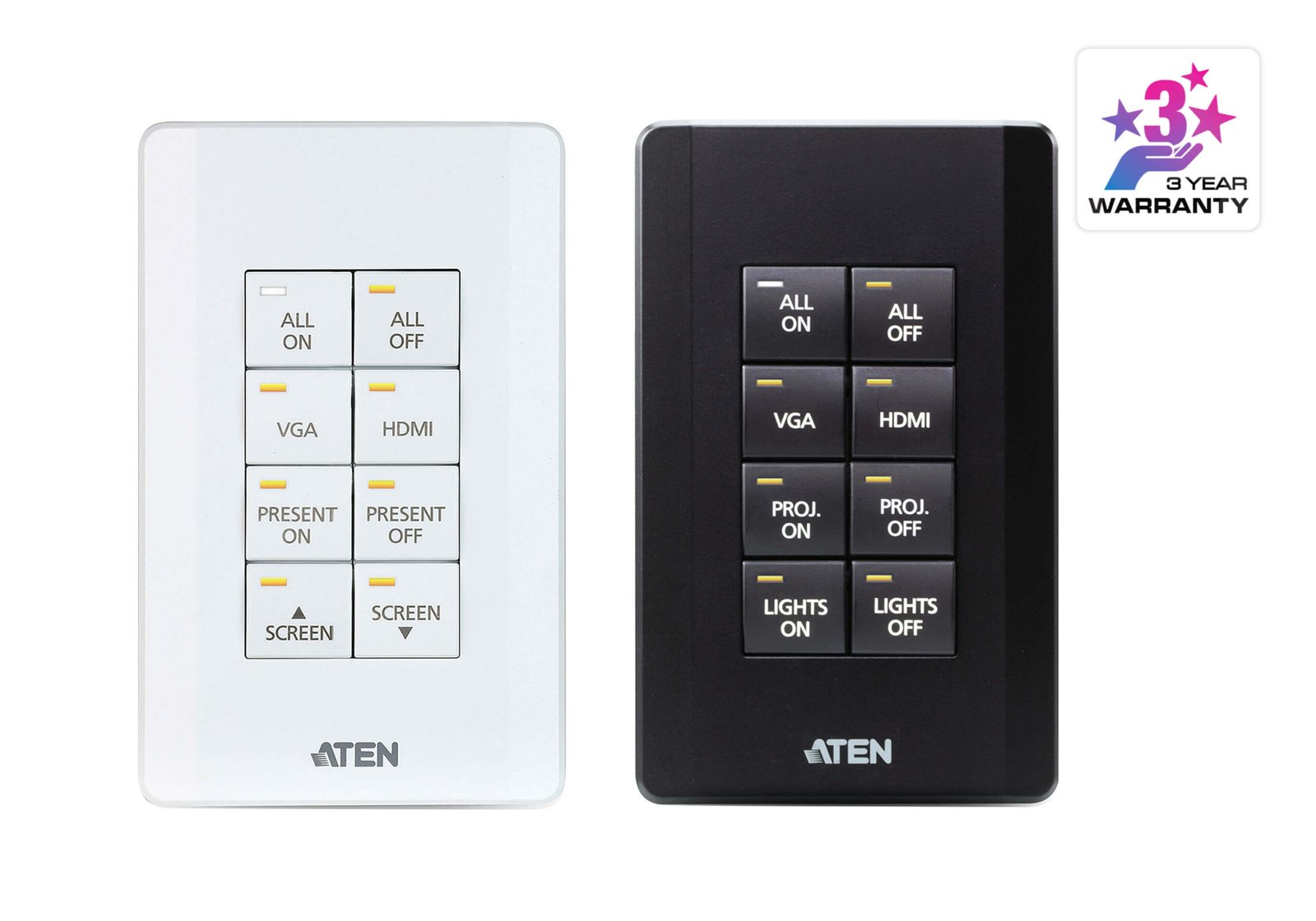

- Available in black or white color
- System LED indicators for quick connection status check
- Dual-color button LEDs for clear indication and visibility in dark environments
- Easy ID pairing with Control Box for Ethernet communication
- Up to 8 keypads connect to a single Control Box for future scalability
- Unrestricted modes support flexible behavior settings for each button
- Intuitive web GUI for easy keypad configuration
- Dual power supply – DC 5V or Power over Ethernet
- Flexible installation made easier with VK101 tabletop kit, allowing for device mounting on the table or to the wall*
- Customized button engraving service
SPECIFICATIONS
| INTERFACES | |

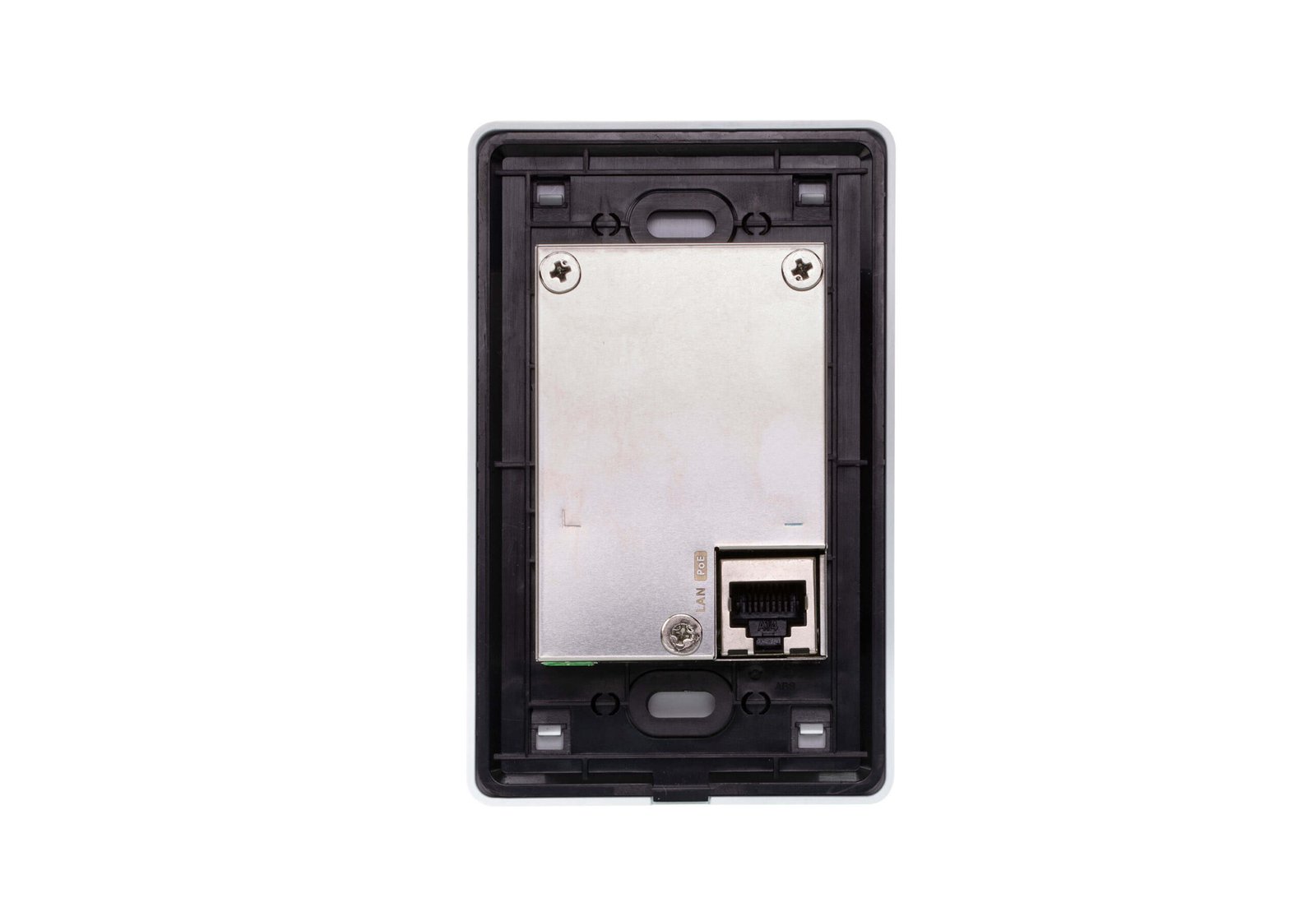

| Ethernet | • 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0 |
| Keypad Layout | 4~8 buttons customizable in 14 keypad layouts |
| SWITCHES | |

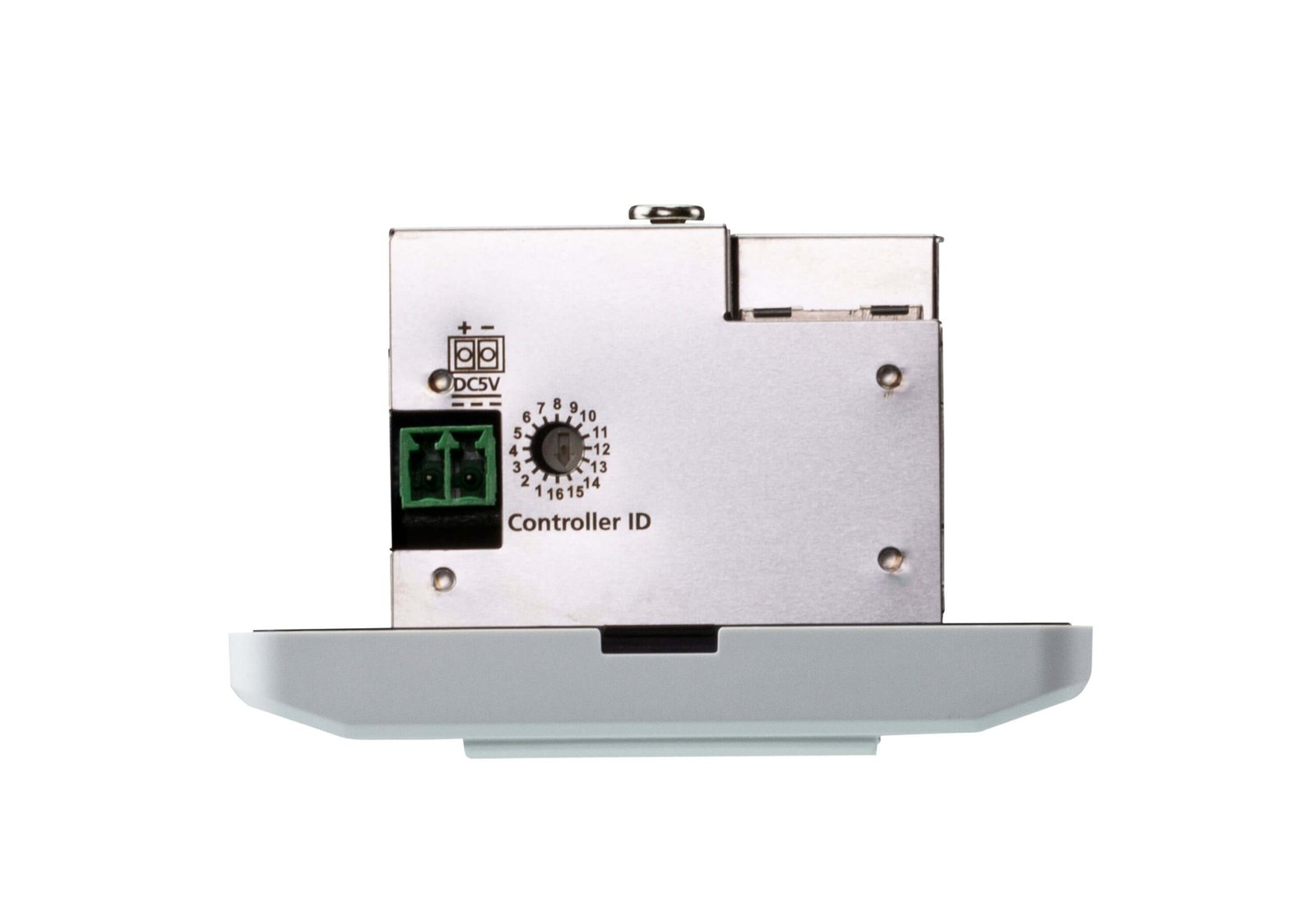

| Controller ID | 1 x 16-segment Switch |

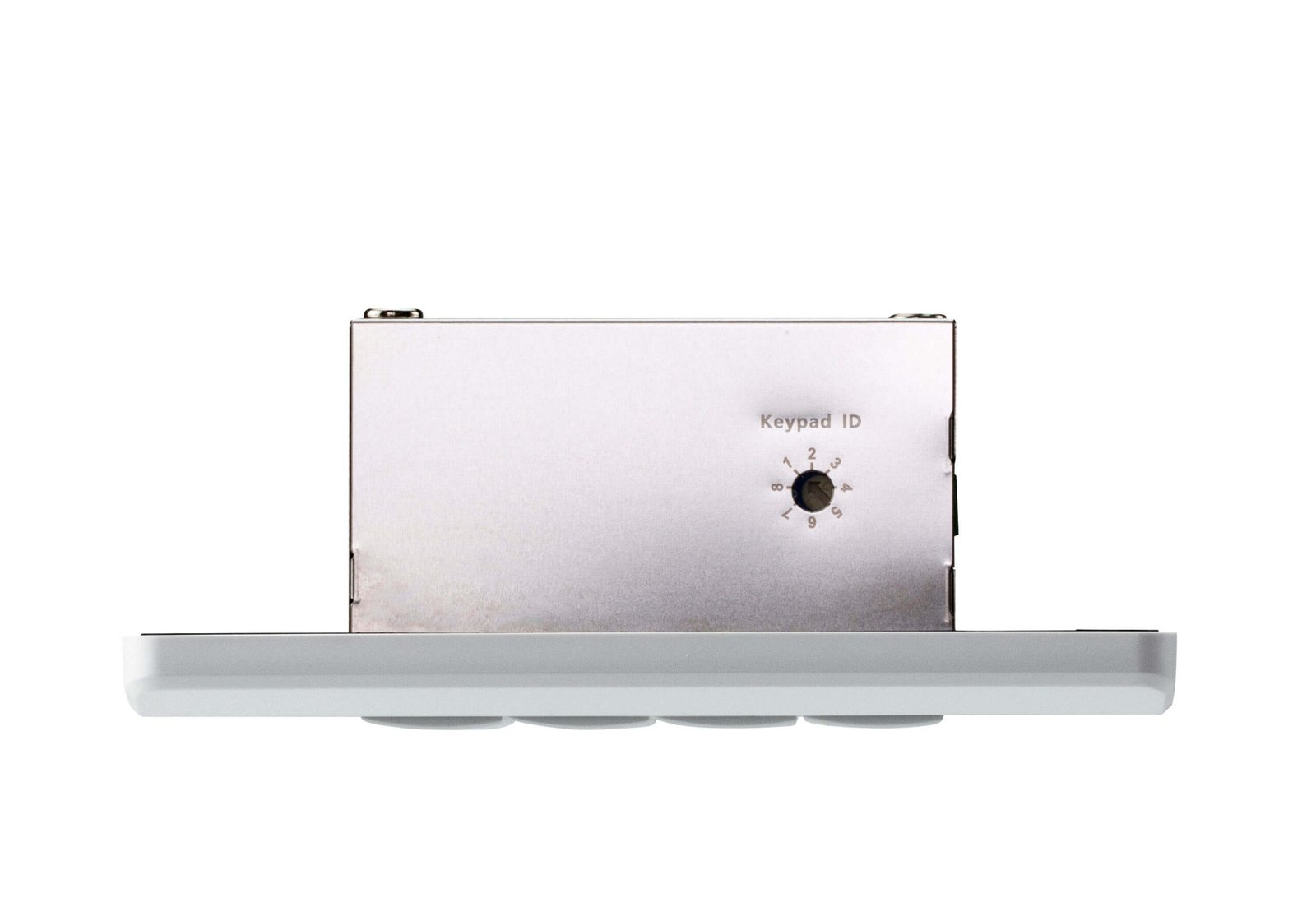

| Keypad ID | 1 x 8-segment Switch |
| Reset Button | 1 x Semi-recessed Pushbutton |
| Power Consumption | DC5V:1.25W:6BTU/h DC48V:1.58W:7BTU/hNote: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| ENVIRONMENTAL | |
| Operating Temperature | 0 – 50°C |
| Storage Temperature | –20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing |
| PHYSICAL PROPERTIES | |
| Housing | Plastic |
| Weight | 0.13 kg ( 0.29 lb ) |
| Dimensions (L x W x H) | 11.63 x 7.06 x 3.89 cm (4.58 x 2.78 x 1.53 in.) |
| Faceplate Dimensions (L x W x H) | 11.92 x 7.42 x 0.92 cm (4.69 x 2.92 x 0.36 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
PACKAGE CONTENTS
- 1x VK108US 8-Button Keypad (US, 1 Gang)
- 1x Button Pack
- 1x Terminal Block
- 1x Faceplate
- 1x User Instructions
