ATEN VK112EU-AT 12-Button Keypad Controller EU 2-Gang AV Control Interface for ATEN Systems

Name: ATEN VK112EU-AT 12-Button Keypad Controller EU 2-Gang AV Control Interface for ATEN Systems
SKU: VK112EU-AT

Brand :

Sku: VK112EU-AT

Available in stock

Features

The ATEN VK112EU-AT is a 12-button EU 2-gang keypad controller designed for seamless integration with ATEN control systems. Ideal for meeting rooms and classrooms, it offers customizable control, easy wall-mount installation, and a sleek, modern interface for AV automation.

Request for Quote

Compare Wishlist

EAN: 4719264646362 Category: AV Control Devices Brand: ATEN

Description
Reviews (0)

Description

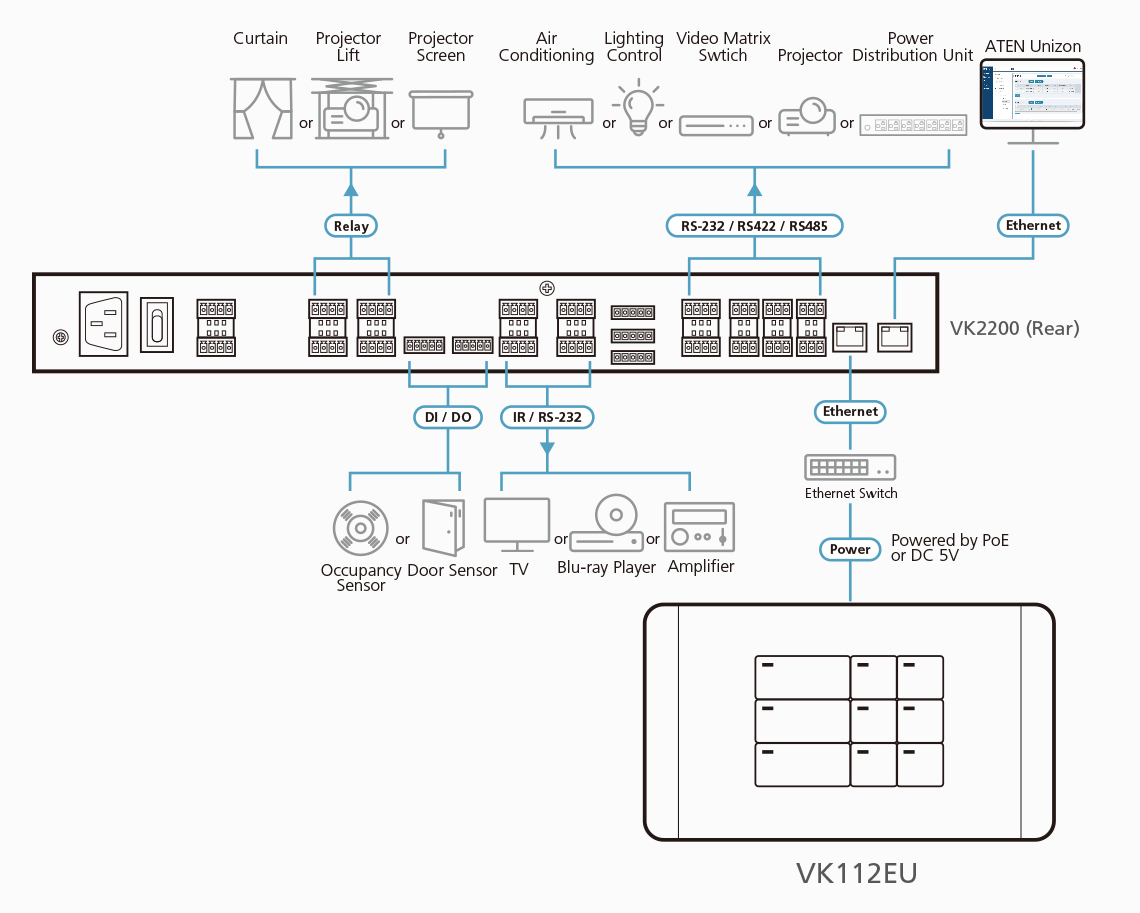

The VK112EU is a fully-customizable 12-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind, the 2-gang keypad can be laid out in 125 different combinations of 6 to 12 buttons that snap together as easy as Lego’s. By connecting to the VK2200 / VK1200 / VK2100A / VK1100A Control Box or VK0100 / VK0200 Control Pad over a LAN, users will find it’s effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the buttons ready to go, users have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK112EU is an affordable solution, perfect to serve as the primary interface in meeting rooms, or as secondary device control in classrooms and conference centers.

FEATURES

Keypad – provides physical connection to the ATEN Control System

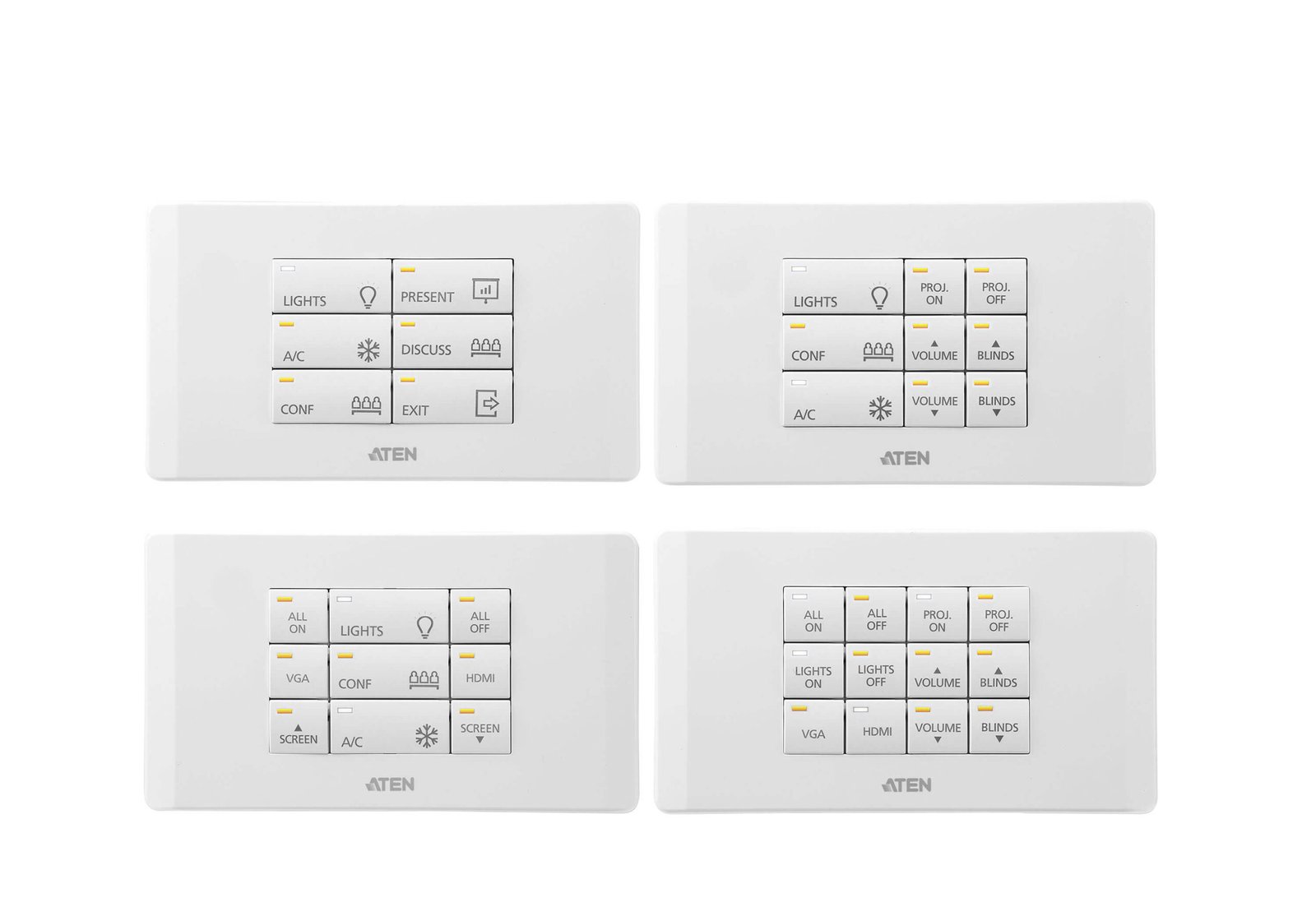

Fully customizable with 125 layout combinations of 6 to 12 buttons

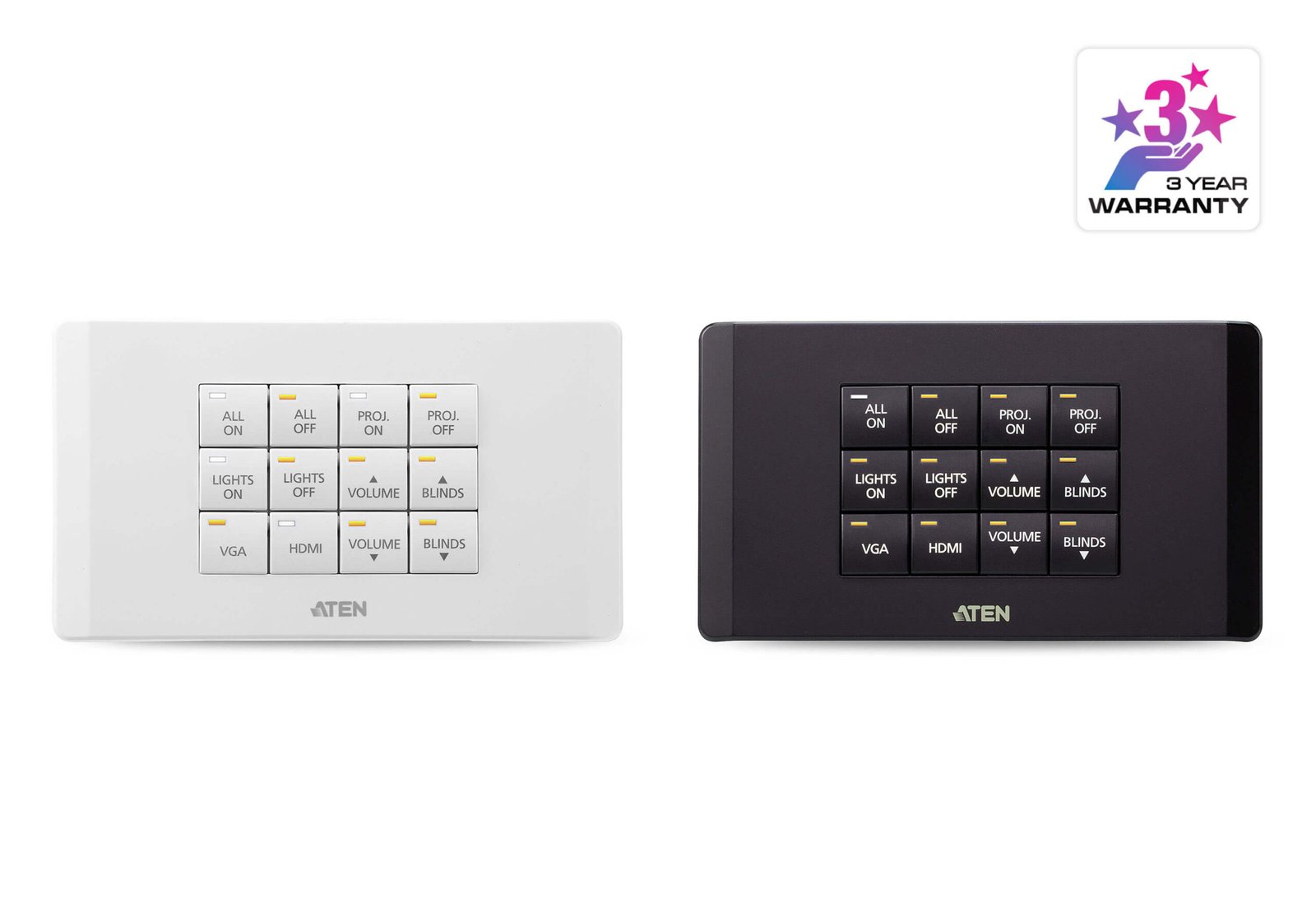

Available in black or white color
System LED indicators for quick connection status check
Dual-color button LEDs for clear indication and visibility in dark environments
Easy ID pairing with Control Box for Ethernet communication
Up to 8 keypads connect to a single Control Box for future scalability
Versatile modes support flexible behavior settings for each button
Intuitive web GUI for easy keypad configuration
Dual power supplies with Power over Ethernet (PoE) and DC power
Customized button engraving service

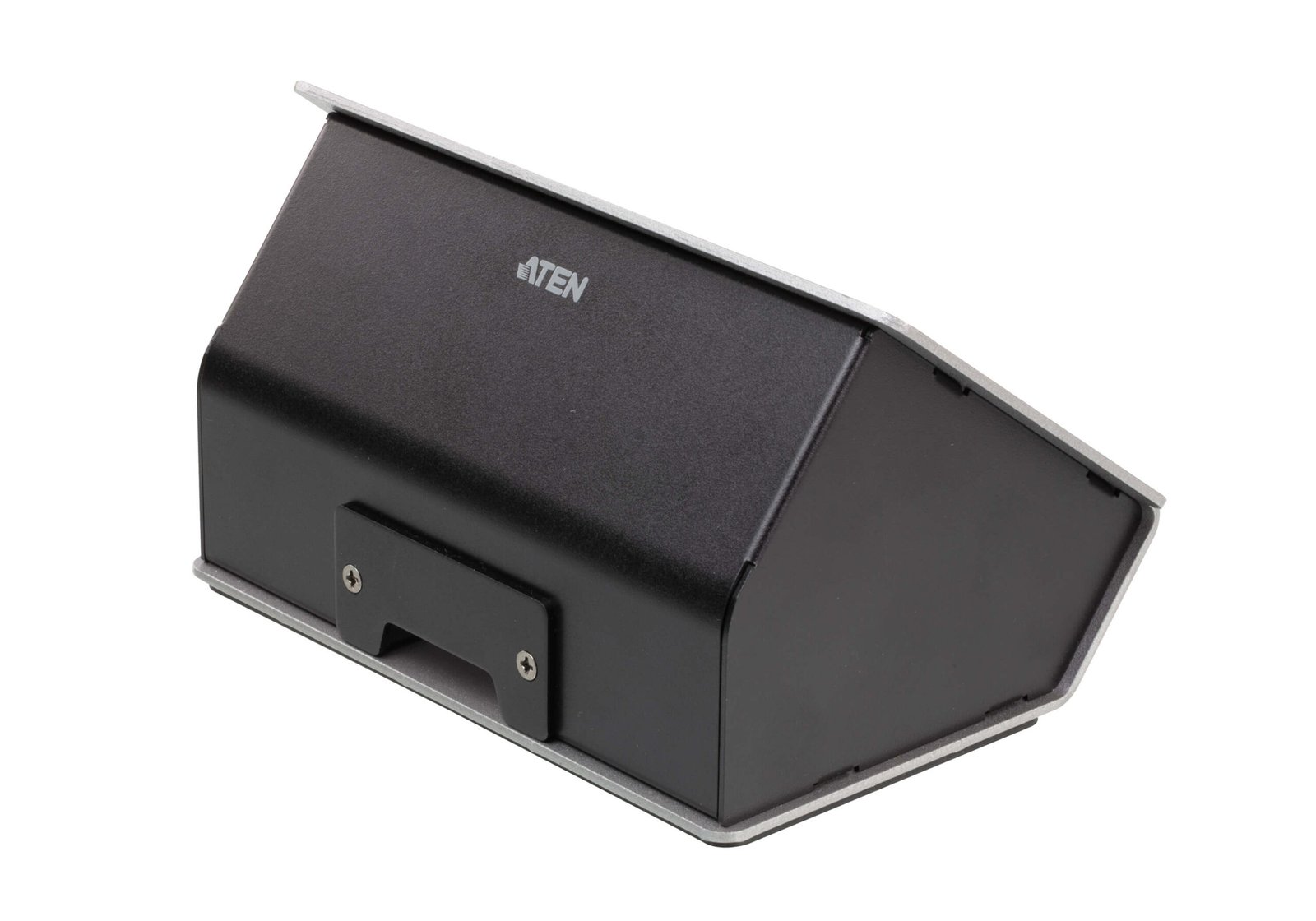

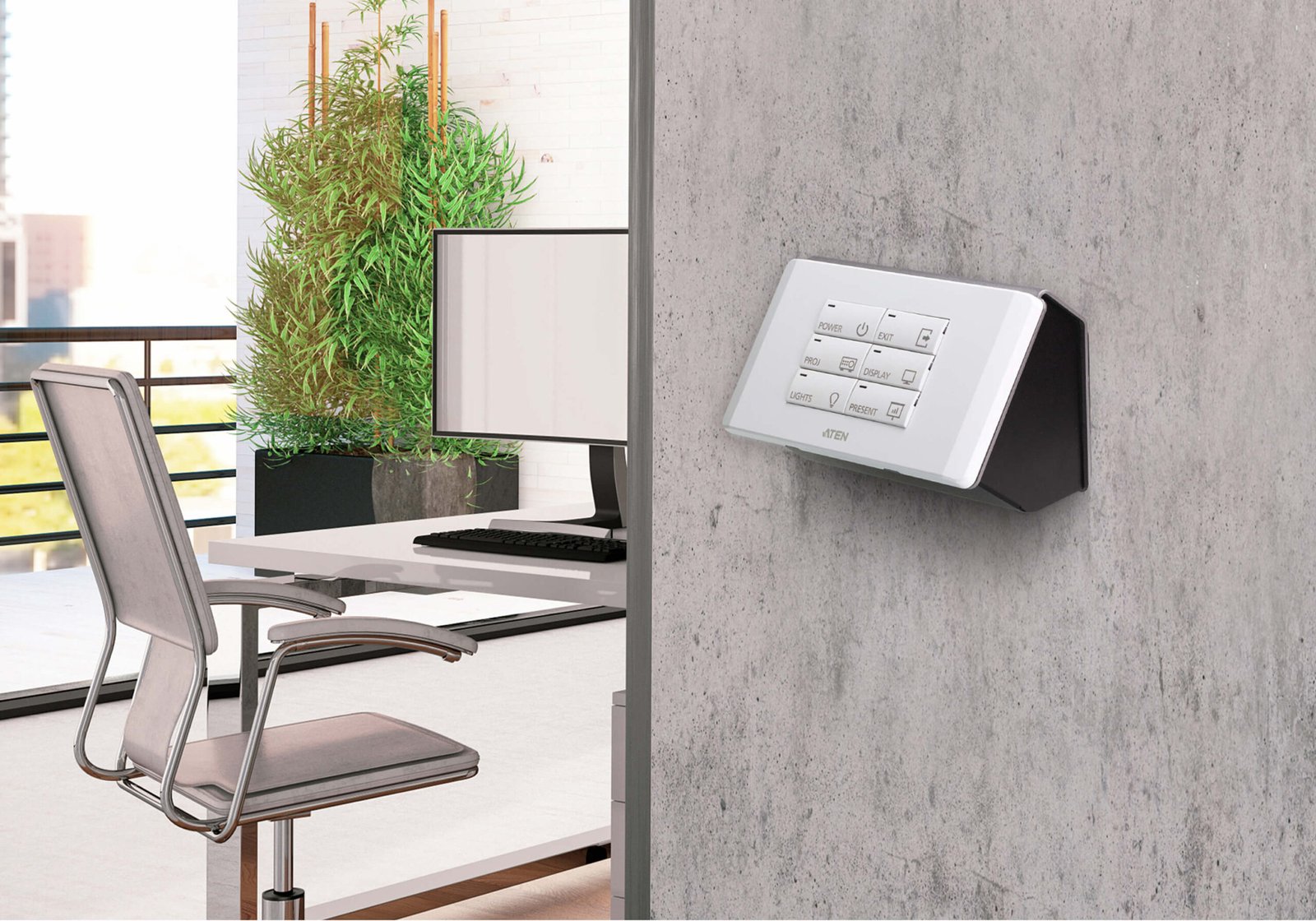

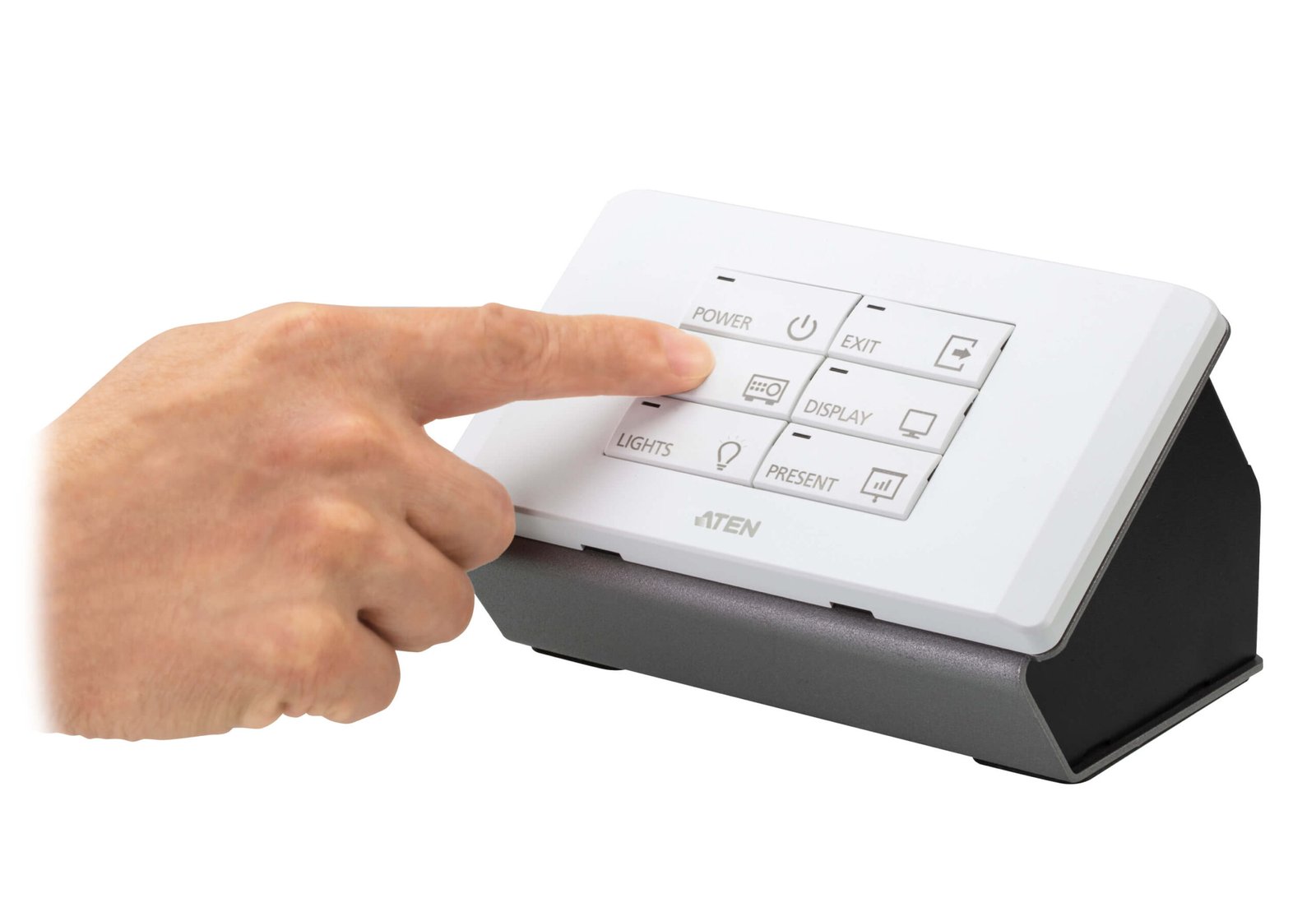

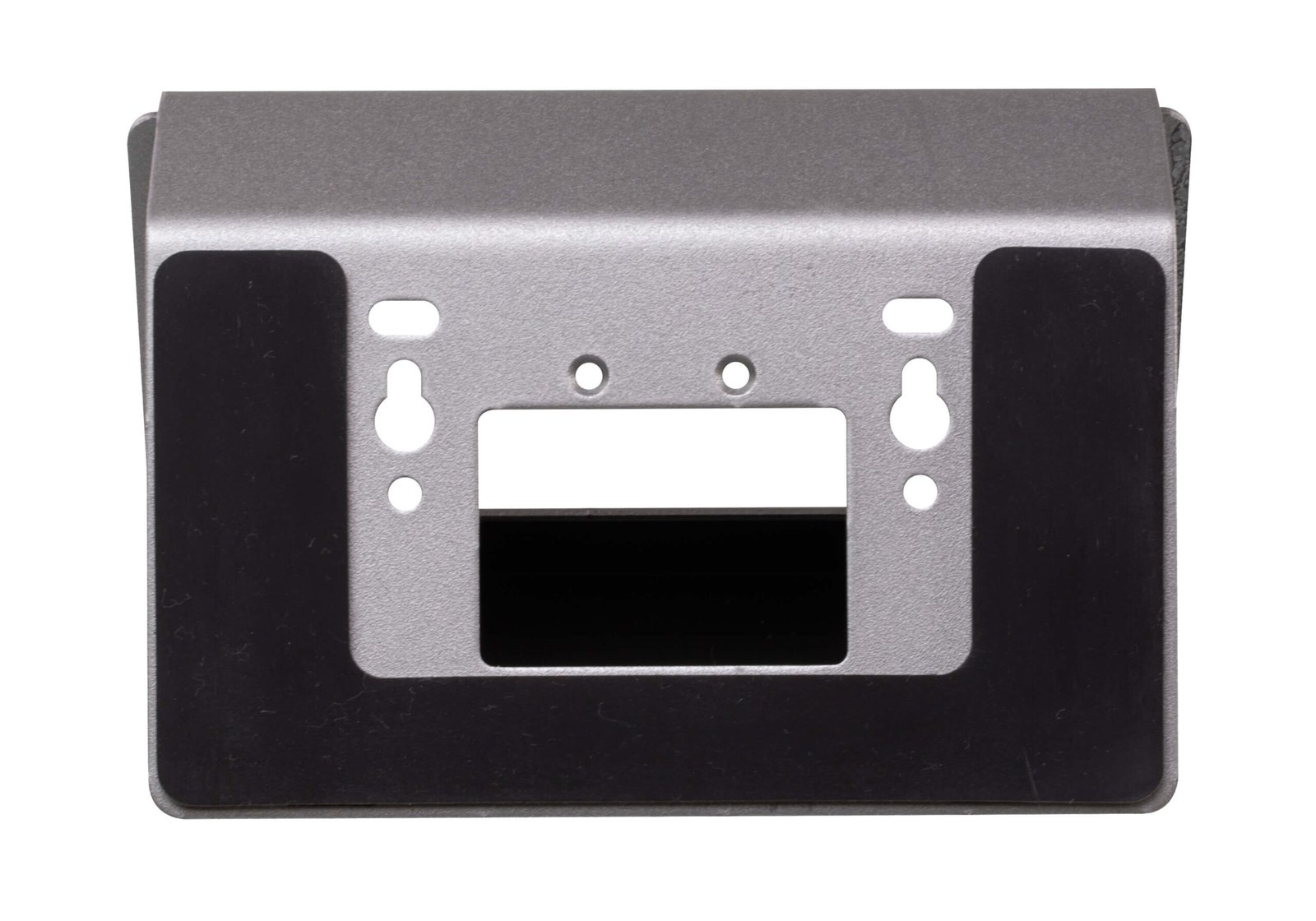

Flexible installation is made easier with the keypad tabletop kit (VK112EUTTK), allowing for device mounting on the table or to the wall

SPECIFICATIONS

INTERFACES
Ethernet	• 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0
Keypad Layout	6~12 buttons customizable in 125 keypad layouts
SWITCHES

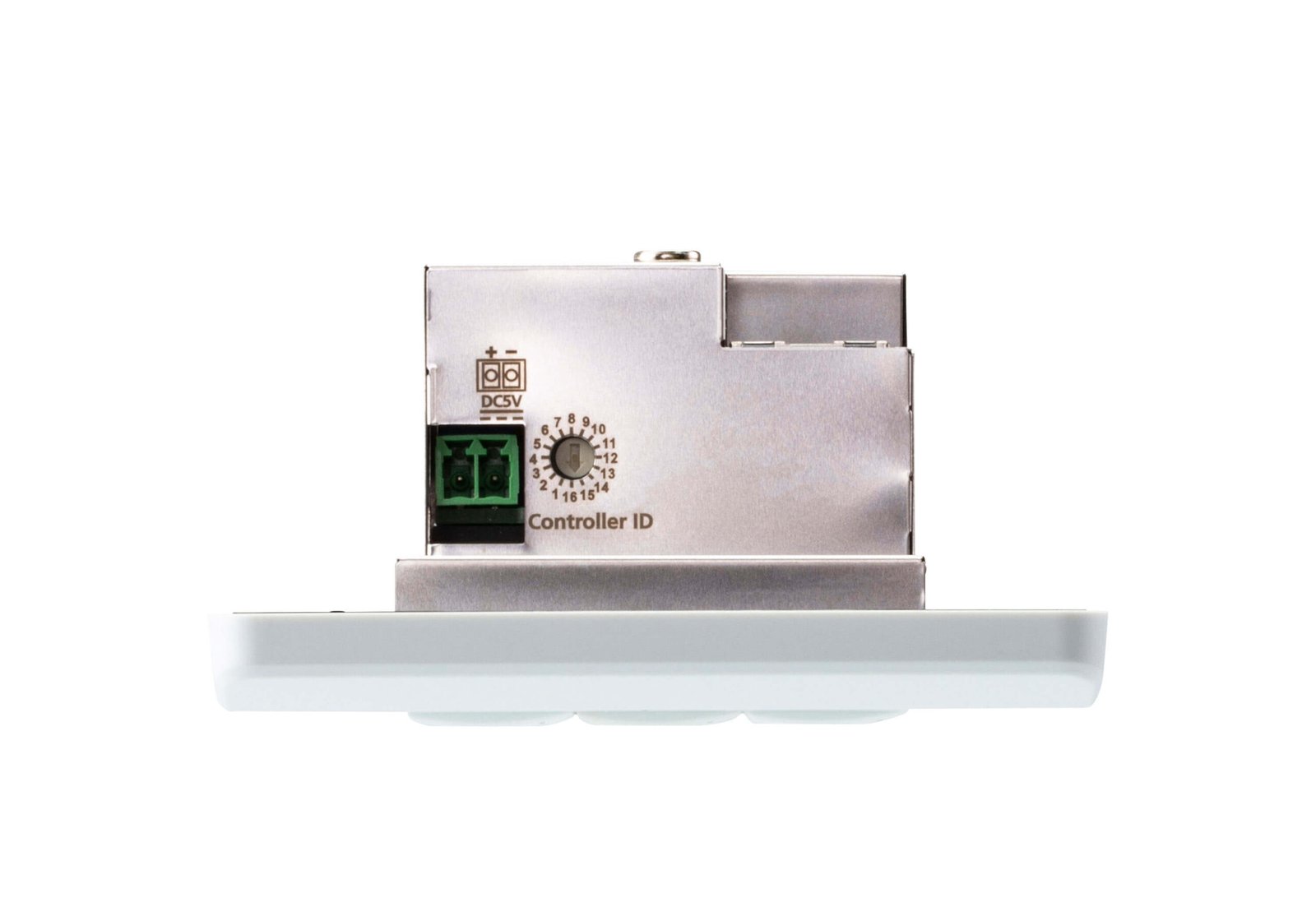

Controller ID	1 x 16-segment Switch

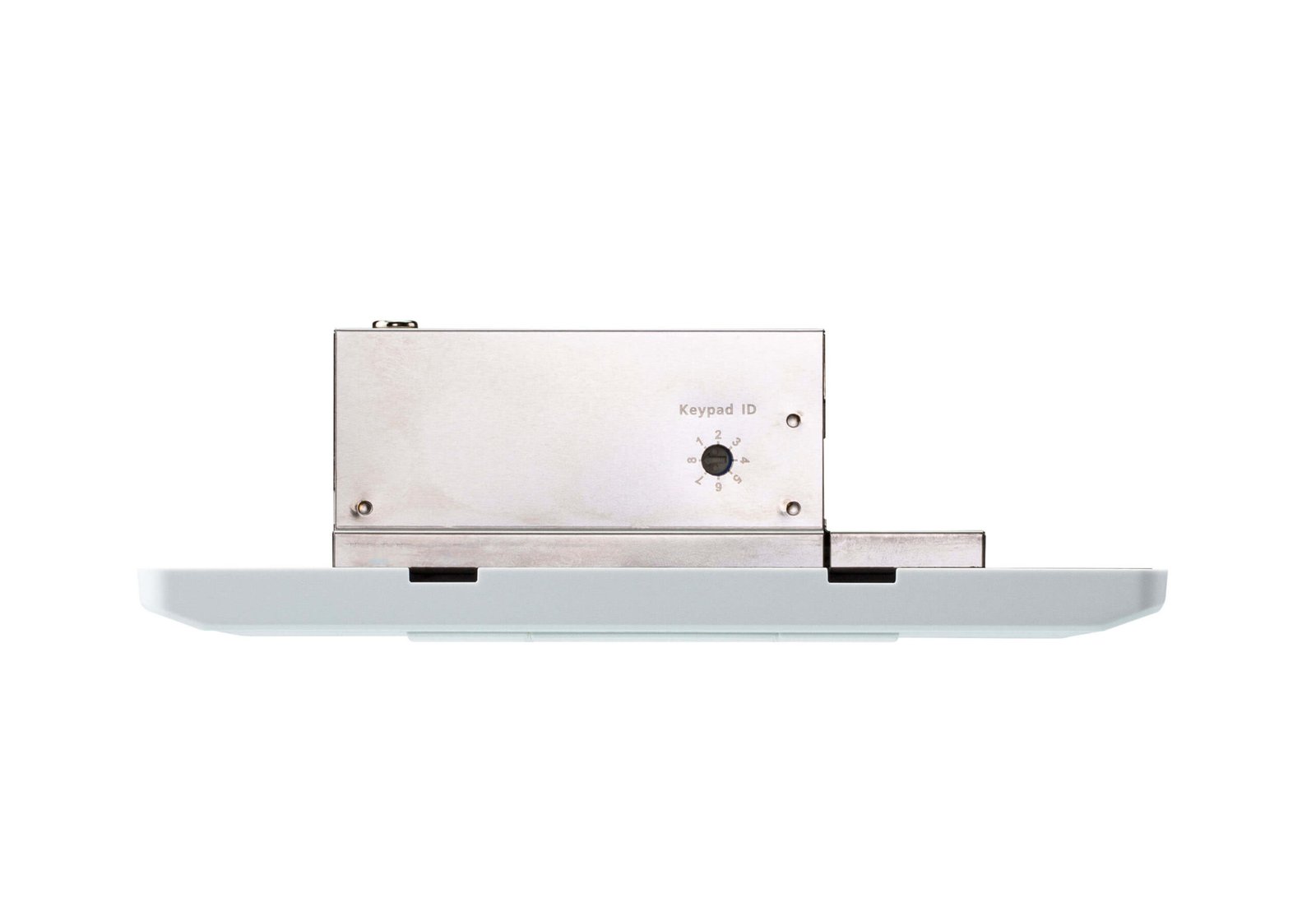

Keypad ID	1 x 8-segment Switch
Reset Button	1 x Semi-recessed Pushbutton
Power Consumption	DC5V:1.25W:6BTU/h POE:1.56W:7BTU/hNote: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
ENVIRONMENTAL
Operating Temperature	0 – 50°C
Storage Temperature	–20 – 60°C
Humidity	0 – 80% RH, Non-Condensing
PHYSICAL PROPERTIES
Housing	Plastic
Weight	0.17 kg ( 0.37 lb )
Dimensions (L x W x H)	8.32 x 14.76 x 4.80 cm (3.28 x 5.81 x 1.89 in.)
Faceplate Dimensions (L x W x H)	8.62 x 15.12 x 0.92 cm (3.39 x 5.95 x 0.36 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
