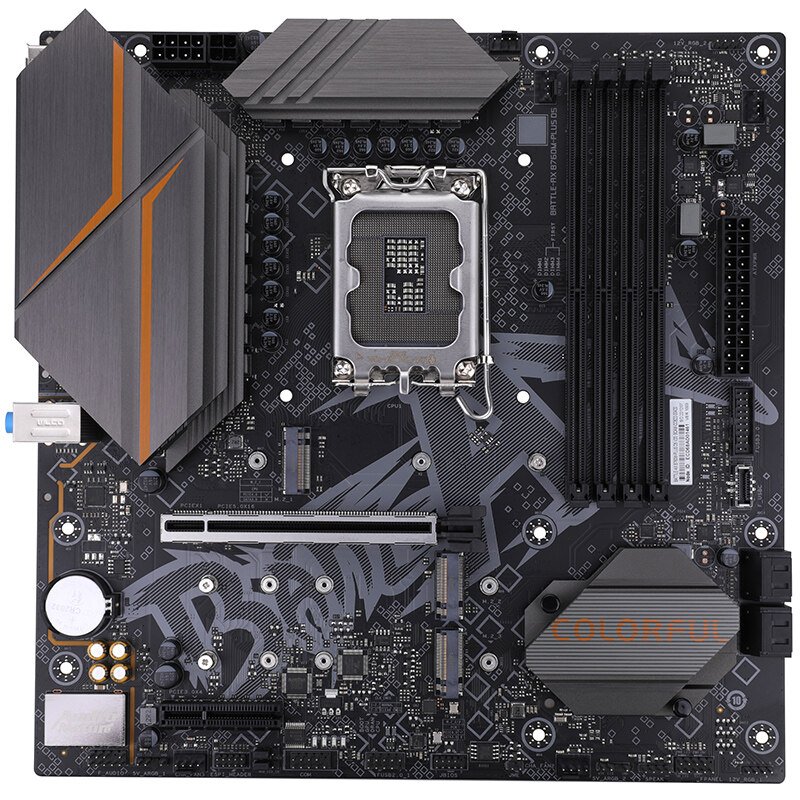

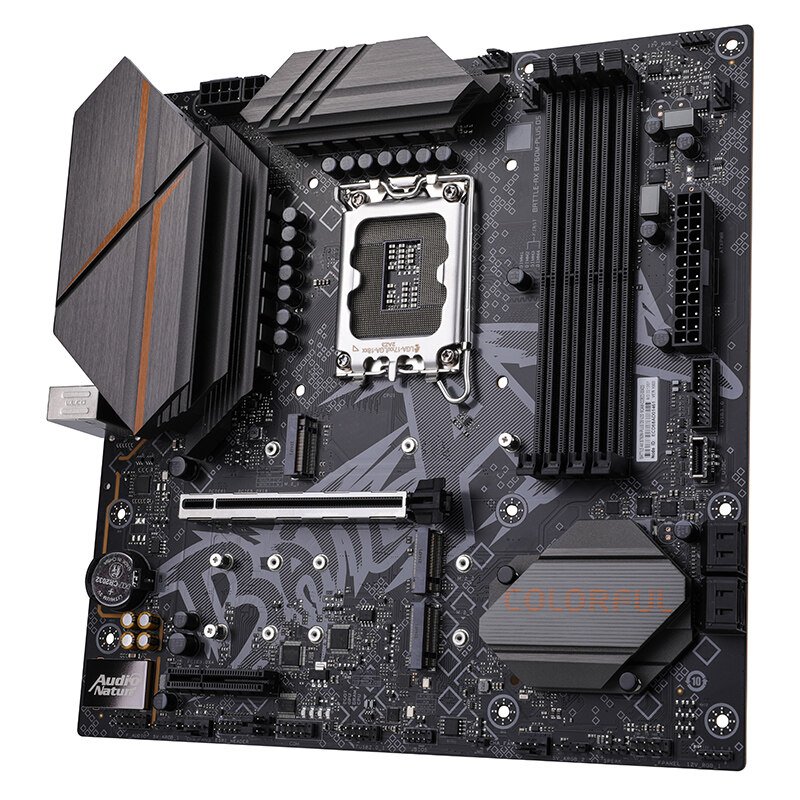

BATTLE-AX B760M-PLUS D5 V20

The Colorful BATTLE-AX B760M-PLUS D5 V20 combines cutting-edge performance with enhanced durability for gaming and productivity builds. Powered by the Intel B760 chipset, it supports Intel’s 14th, 13th, and 12th Gen Core™, Pentium®, and Celeron® processors on the LGA 1700 socket. Its 12+1+1 reinforced power supply design ensures stable power delivery, making it ideal for high-performance CPUs.

With four DDR5 slots supporting up to 192GB and speeds up to DDR5-7200 (OC), the board delivers exceptional memory performance with Intel XMP support. For storage, it offers triple PCIe 4.0 x4 M.2 slots and four SATA 6Gb/s ports with RAID 0/1/5/10 support, giving users both speed and flexibility.

Expansion capabilities include one PCIe 5.0 x16 slot for next-gen GPUs and one PCIe 3.0 x4 slot for additional devices. Rear I/O provides a strong mix of connectivity, including USB 3.2 Gen 2 Type-C, HDMI 2.0, DisplayPort 1.2, Realtek 2.5G LAN, and audio jacks. The motherboard also features onboard ARGB and RGB headers, plus iGame Center light efficiency software for synchronized system lighting.

Enhanced with a customized heat dissipation armor, six protection technologies, and a comprehensive PCB atomization upgrade, the BATTLE-AX B760M-PLUS D5 V20 delivers quality, reliability, and stability for demanding PC users.

Features

• Supports Intel 14th/13th/12th Gen Core™, Pentium®, and Celeron® processors

• 12+1+1 reinforced power supply design for stability

• Four DDR5 DIMM slots, up to 192GB, speeds up to 7200MHz (OC), Intel XMP supported

• Triple PCIe 4.0 x4 M.2 SSD slots + 4× SATA 6Gb/s with RAID 0/1/5/10 support

• Expansion with PCIe 5.0 x16 and PCIe 3.0 x4 slots

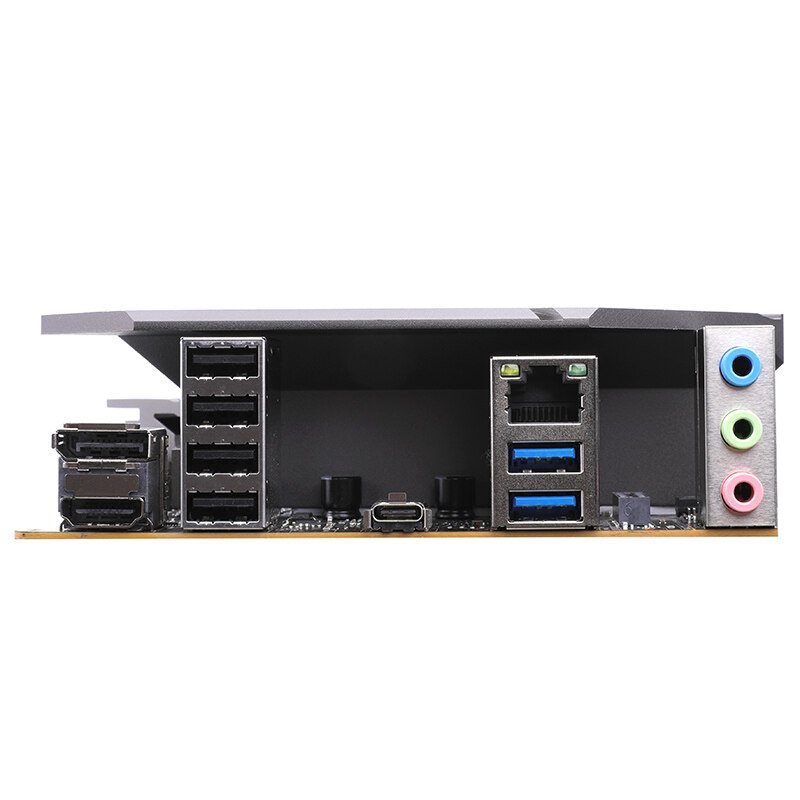

• Rear I/O: USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, USB 2.0, HDMI 2.0, DP 1.2, LAN, audio jacks

• Realtek RTL8125 2.5G LAN for high-speed networking

• Realtek ALC897 5.1-channel high-fidelity audio

• ARGB and RGB lighting headers with iGame Center software control

• Enhanced cooling with heat dissipation armor and dedicated pump header

• Six protection technologies and upgraded PCB atomization for durability

• mATX form factor (245mm × 245mm)
