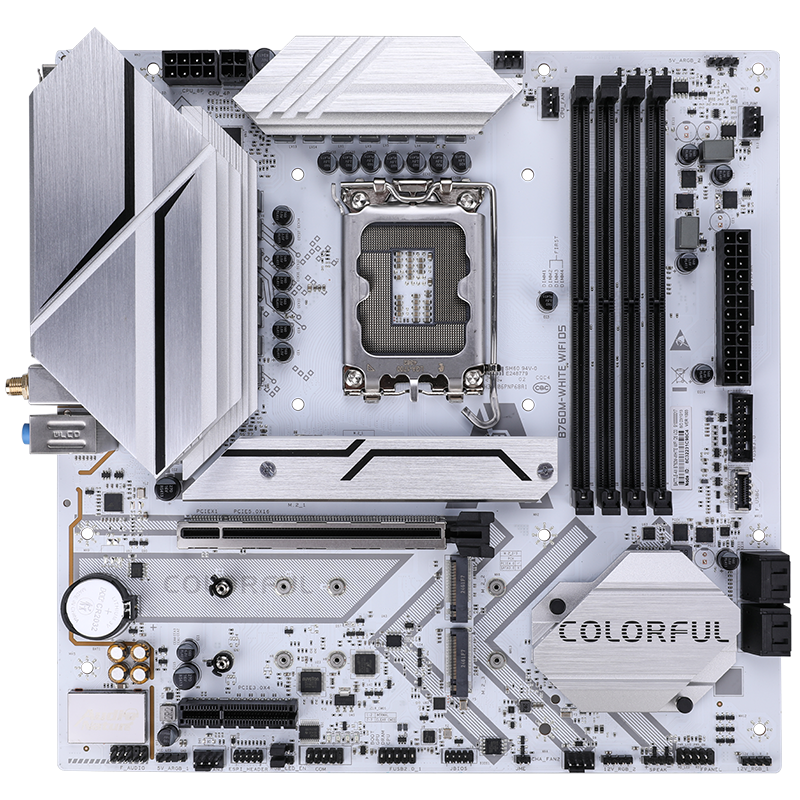

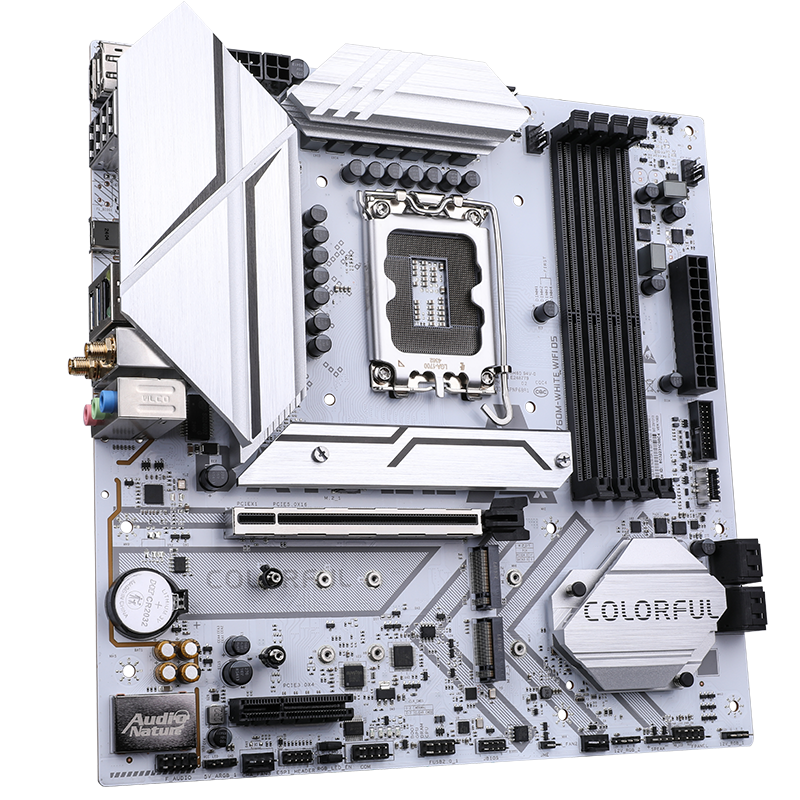

BATTLE-AX B760M-WHITE WIFI D5 V20

The BATTLE-AX B760M-WHITE WIFI D5 V20 brings together elegant aesthetics and robust engineering in a sleek white Micro-ATX form factor. Equipped with a 12+1+1 phase reinforced power supply (DrMOS 55A) and comprehensive PCB atomization technology, it ensures stable power delivery and long-term durability.

It supports Intel® 14th, 13th, and 12th Gen Core™, Pentium®, and Celeron® processors with the LGA 1700 socket, along with DDR5 memory up to 192GB, reaching speeds of DDR5-7200 (OC). With three PCIe 4.0 M.2 slots, four SATA ports, and RAID support, it offers high-speed storage flexibility. Expansion includes a PCIe 5.0 x16 slot for next-gen GPUs.

Connectivity is cutting-edge, featuring Realtek 2.5G LAN, AX101 WiFi 6, Bluetooth 5.2, USB 3.2 Gen 2 Type-C, and multiple USB 3.2 Gen 1 Type-A ports. Display options include HDMI 2.0 and DP 1.2 with up to 4K resolution. For customization, iGame Center software enables synchronized RGB control for fans, radiators, and memory.

Strictly tested through 200 quality processes and reinforced with six protection technologies, the B760M-WHITE WIFI D5 V20 provides reliability and performance for gaming rigs and enthusiast builds.

Features

• BATTLE-AX exclusive all-white motherboard with upgraded PCB atomization process

• 12+1+1 phase reinforced power supply design (DrMOS 55A)

• Supports Intel® 14th/13th/12th Gen Core™, Pentium®, and Celeron® processors (LGA 1700)

• 4×DDR5 DIMM slots, up to 192GB, with speeds up to DDR5-7200 (OC)

• 3×PCIe 4.0 M.2 slots + 4×SATA ports with RAID 0/1/5/10 support

• 1×PCIe 5.0 x16 slot for next-generation graphics cards

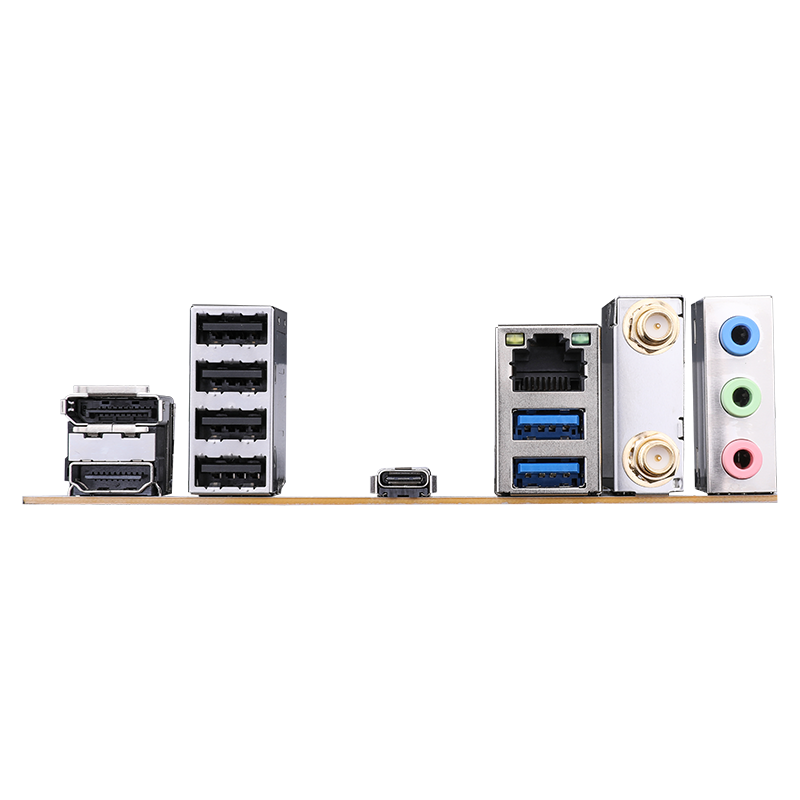

• Rear USB 3.2 Gen 2 Type-C and dual USB 3.2 Gen 1 ports

• Realtek 2.5G LAN, Intel AX101 WiFi 6, and Bluetooth 5.2 connectivity

• RGB and ARGB headers with full lighting control via iGame Center

• Rigorously tested with six protection technologies for long-term reliability
