CVN B760I FROZEN WIFI D5 V20

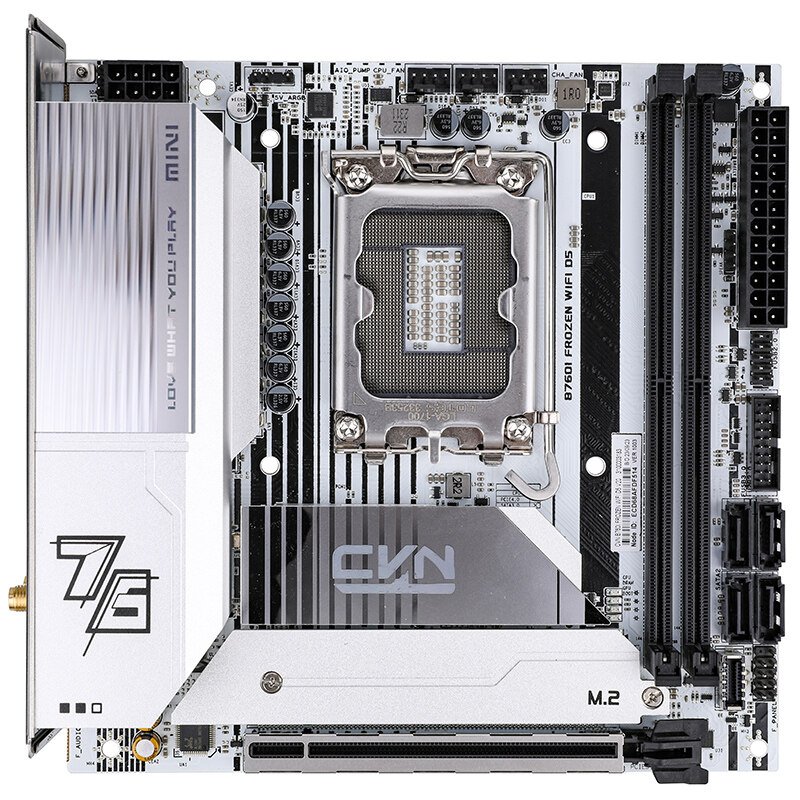

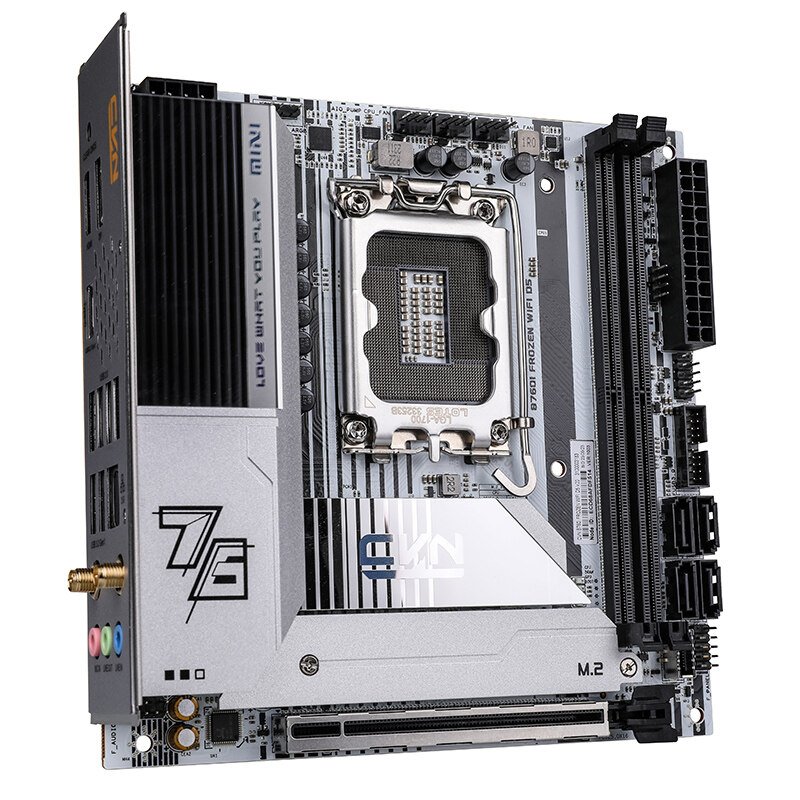

The Colorful CVN B760I FROZEN WIFI D5 V20 is an ITX motherboard crafted for builders seeking both performance and aesthetics in a compact form factor. With the Intel B760 chipset, it supports Intel’s 14th, 13th, and 12th Gen Core™, Pentium®, and Celeron® processors on the LGA 1700 socket. Its white CVN-series frost cooling armor with full-coverage condensing fins enhances heat dissipation, making it ideal for high-performance gaming and productivity systems.

This board offers two DDR5 DIMM slots supporting up to 96GB memory and speeds up to DDR5-8000(OC), with Intel XMP for easy tuning. For storage, it includes two PCIe 4.0 x4 M.2 slots and four SATA 6Gb/s ports, with RAID 0/1/5/10 support. Expansion is powered by a single PCIe 5.0 x16 slot for next-gen GPUs.

Connectivity is comprehensive, with USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1 Type-A, HDMI 2.0, DisplayPort 1.2, Realtek 2.5G LAN, and Intel AX200 WiFi 6 with Bluetooth 5.2. Onboard ARGB headers and iGame Center software provide lighting customization.

Tested with over 200 processes and protected with six stability technologies, plus an upgraded PCB atomization process, the CVN B760I FROZEN WIFI D5 V20 delivers high reliability in a stylish, compact design.

Features

• CVN-series exclusive white motherboard with frost cooling armor

• Supports Intel 14th/13th/12th Gen Core™, Pentium®, and Celeron® processors (LGA 1700 socket)

• 2× DDR5 slots, up to 96GB, speeds up to DDR5-8000(OC), Intel XMP supported

• Dual PCIe 4.0 x4 M.2 SSD slots + 4× SATA 6Gb/s with RAID 0/1/5/10 support

• 1× PCIe 5.0 x16 expansion slot for latest GPUs

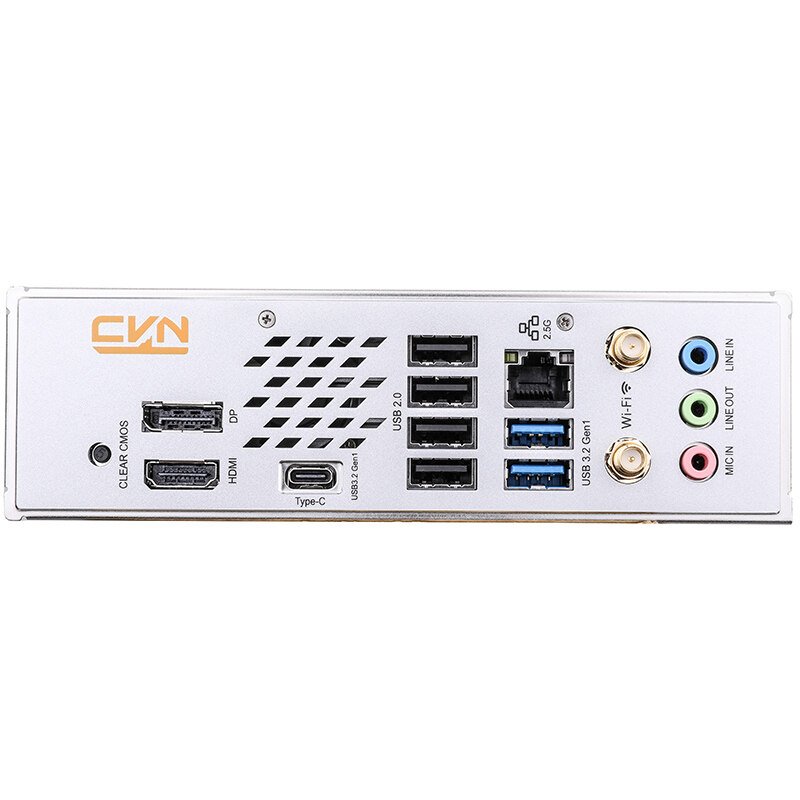

• Rear I/O: USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1 Type-A, USB 2.0, HDMI 2.0, DP 1.2, LAN, WiFi antennas, audio, Clear CMOS key

• Realtek RTL8125 2.5G LAN + Intel AX200 WiFi 6 + Bluetooth 5.2

• 5.1-channel HD audio

• ARGB header with iGame Center lighting synchronization

• Six protection technologies and upgraded PCB atomization for stability

• Mini-ITX form factor (170mm × 170mm)
