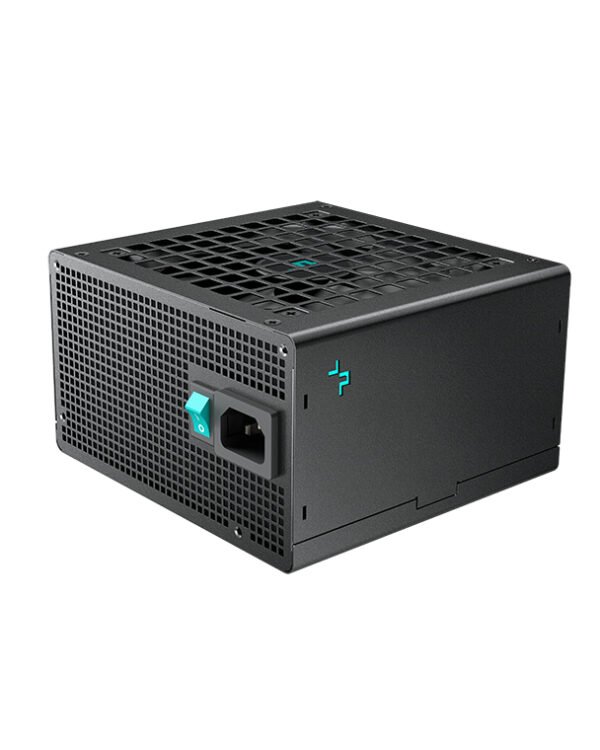

Deepcool PL750D 80 PLUS Bronze Non-Modular Power Supply
The DeepCool PL750D is a 750W non-modular power supply unit (PSU) designed to deliver reliable and efficient power for mid-range desktop PC builds. It is certified with the 80 PLUS Bronze efficiency rating, ensuring at least 85% energy efficiency under typical 50% load conditions.
Features
80 PLUS Bronze Efficiency
Rated for up to 85% efficiency at 50% load, minimizing power loss and heat output.Fixed Cable Layout (Non-Modular)
Comes with pre-attached cables, making it more budget-friendly though less customizable for cable management.Quiet, Long-Lasting Cooling
Utilizes a 120mm hydro-bearing fan designed for low-noise operation and extended fan life.Efficient Power Architecture
Built with active Power Factor Correction (PFC) and DC-to-DC conversion for stable and consistent voltage output.Extensive Safety Protections
Equipped with a full suite of safety features including Over/Under Voltage Protection, Over Power/Current Protection, Short Circuit Protection, Over Temperature Protection, and more.Broad Compliance & Warranty
Meets multiple international regulatory standards and comes with a 5-year limited warranty for added peace of mind.
Specifications
| Model Name | DeepCool PL750D |
| Form Factor | ATX12V V3.1 |
| Power Output | 750 Watts |
| Efficiency Rating | 80 PLUS Bronze (≥85% efficiency at 50% load) |
| Cooling Fan | 120mm Hydro Bearing |
| Topology | Active PFC + DC-to-DC Conversion |
| Capacitors | Standard Electrolytic (Chinese origin) |
| Hold-Up Time | ≥16ms at 75% load |
| Operating Temperature | 0°C – 40°C |
| MTBF | ≥100,000 hours |
| Cable Type | Non-modular (fixed flat black cables) |
| Regulatory Certifications | CE, FCC, CCC, RCM, BIS, EAC, CAN ICES-003(B), TUV-RH, etc. |
| Environmental Compliance | ErP 2014, WEEE, China RoHS, Triman, California Prop 65 |
| Warranty | 5 Years (Limited) |
| Dimensions (L×W×H) | 150 × 140 × 86 mm |
