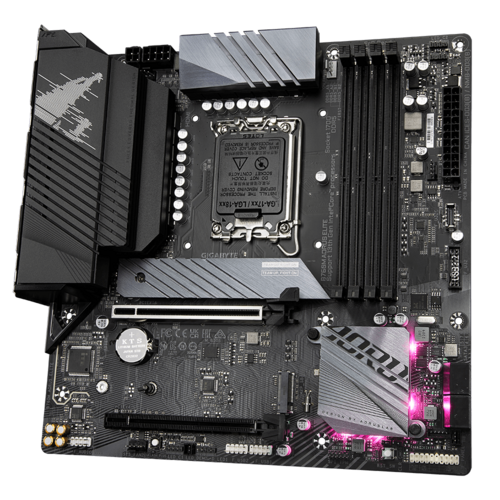

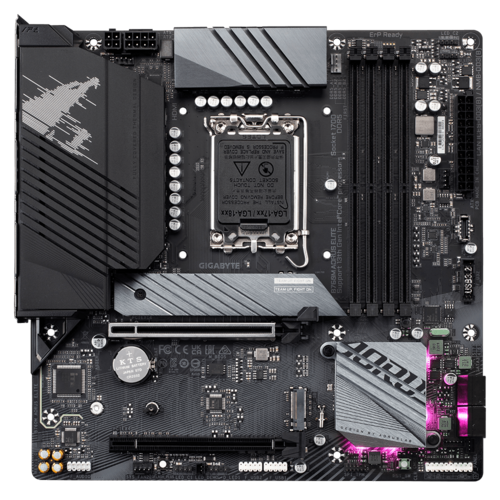

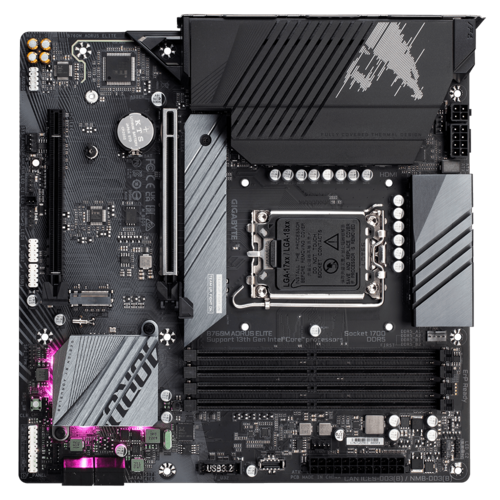

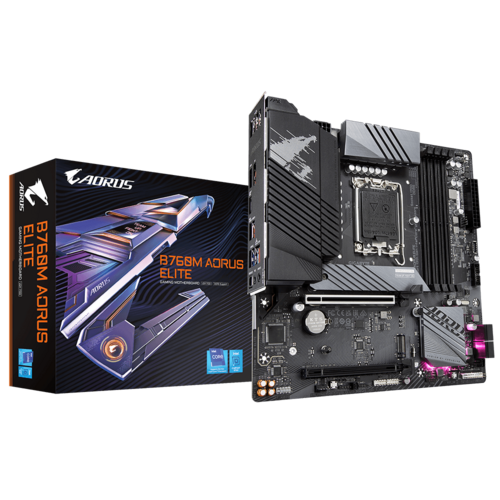

The GIGABYTE B760M motherboard delivers unmatched performance for modern computing. It supports Intel® 14th, 13th, and 12th Gen Core™, Pentium® Gold, and Celeron® processors via the LGA1700 socket, combined with a robust 12+1+1 twin digital VRM power phase design and 60A DrMOS for exceptional power delivery. Ideal for multitasking and gaming, it includes dual-channel DDR5 memory architecture with four DIMM slots supporting up to 256 GB at 7800 MT/s (OC).

For fast storage, it offers two PCIe 4.0 x4 M.2 connectors and four SATA ports with RAID support, ensuring high-speed data access and flexible configurations. Its advanced thermal architecture features a fully covered MOSFET heatsink, 5W/mK thermal pad, and M.2 Thermal Guard to ensure stability and efficient cooling even under intense workloads.

Connectivity is future-ready, including 2.5GbE LAN, USB-C® 10Gb/s (front), USB-C® 20Gb/s (rear), HDMI, DisplayPort, and multi-channel HD audio powered by Realtek®. The board also includes Smart Fan 6 with hybrid fan headers and multiple sensors, allowing granular thermal control. EZ-Latch Plus ensures tool-free M.2 installation, and Q-Flash Plus allows BIOS updates without a CPU or RAM installed.

Engineered for enthusiasts and builders, this board combines GIGABYTE Ultra Durable™ quality with support for features like PerfDrive, PCIe EZ-Latch, and the user-friendly GIGABYTE Control Center.

Features

• Supports Intel® Core™ 14th/13th/12th Gen Processors

• Twin 12+1+1 Phases Digital VRM with 60A DrMOS

• Dual Channel DDR5 up to 7800 MT/s (OC)

• 2× PCIe 4.0 x4 M.2 with EZ-Latch Plus & Thermal Guard

• Realtek® 2.5GbE LAN

• HDMI & DisplayPort up to 4K resolution

• Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s

• Q-Flash Plus BIOS Update Feature

• Fully Covered MOSFET Heatsinks with 5W/mK Pads

• GIGABYTE Control Center for full customization

Specifications
