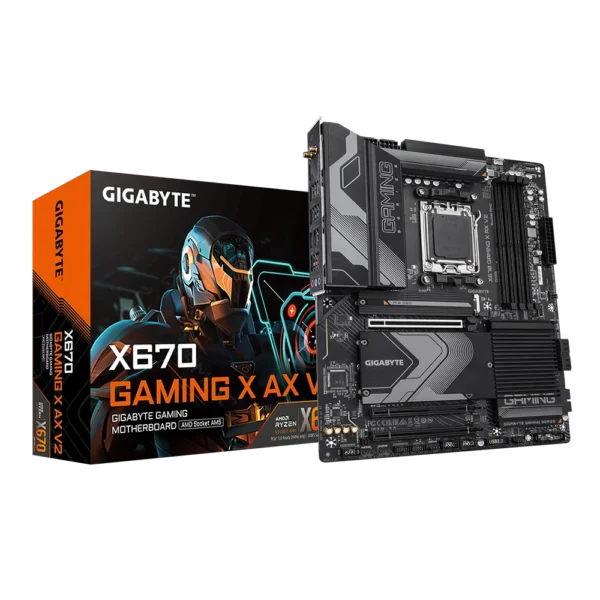

The GIGABYTE X670 GAMING X AX V2 is built to harness the full potential of AMD Ryzen™ 7000, 8000, and 9000 Series CPUs using the AM5 socket. Equipped with a 14+2+2 digital VRM power design, it ensures stable overclocking and long-term durability. The motherboard supports DDR5 memory with both AMD EXPO™ and Intel® XMP profiles, reaching speeds beyond 8000 MT/s.

For storage, it offers one PCIe 5.0 x4 and three PCIe 4.0 x4 M.2 slots along with four SATA 6Gb/s connectors, making it ideal for ultra-fast data access. It features an advanced thermal solution including a fully covered MOSFET heatsink, 8mm mega-heatpipe, and M.2 Thermal Guard to prevent thermal throttling.

EZ-Latch design simplifies hardware installation by allowing screwless mounting of GPUs and M.2 drives. On the connectivity front, it comes with 2.5GbE LAN and Wi-Fi 6E (802.11ax) for fast networking, and dual USB Type-C® 20Gbps ports including front and rear USB 3.2 Gen 2×2. Smart Fan 6 with hybrid headers provides customizable cooling.

GIGABYTE’s exclusive Q-Flash Plus lets users update the BIOS without CPU, RAM, or GPU installed, enhancing the ease of system setup. The motherboard’s build quality is further reinforced with a 6-layer 2x copper PCB, PCIe 5.0-ready mid-loss PCB, and Hi-Fi audio components, making it a future-proof and reliable platform for PC enthusiasts.

Features

• Supports AMD Ryzen™ 7000, 8000, and 9000 Series processors

• Twin 14+2+2 phases digital VRM with 8+8 solid pin CPU power connectors

• Dual channel DDR5, up to 256GB, with AMD EXPO™ & Intel® XMP support

• 1×PCIe 5.0 x4 & 3×PCIe 4.0 x4 M.2 with M.2 Thermal Guard

• PCIe EZ-Latch for tool-free installation

• Realtek® 2.5GbE LAN and Wi-Fi 6E (802.11ax)

• Dual USB Type-C® 20Gbps (Gen 2×2) ports

• Smart Fan 6 with multiple temperature sensors & hybrid fan headers

• Q-Flash Plus for BIOS updates without CPU/RAM/GPU

• Hi-Fi 8-channel audio with premium capacitors

• RGB Fusion with 3x ARGB & 1x RGB headers
