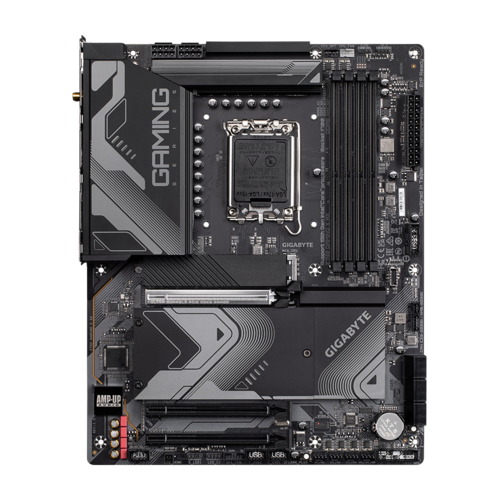

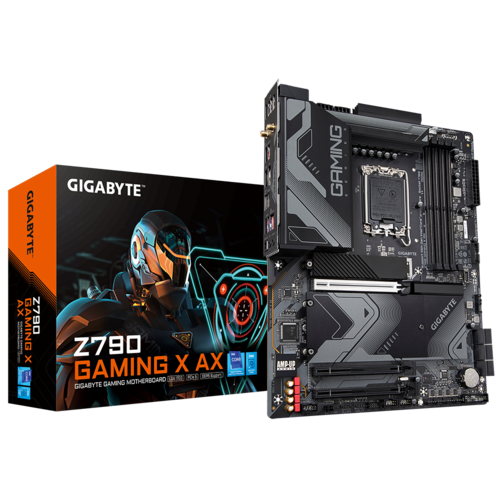

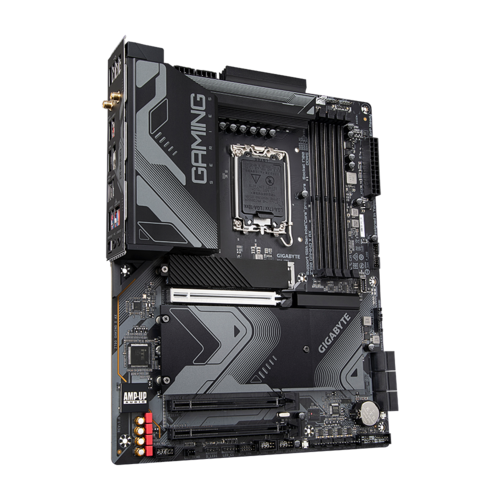

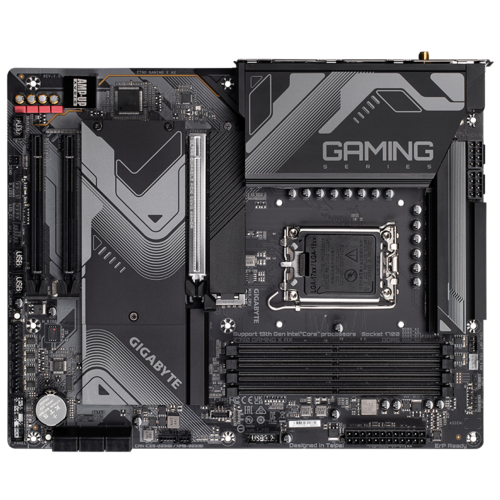

The GIGABYTE Z790 Motherboard
Supports Intel’s 14th, 13th, and 12th Gen Core processors with a robust 16+2+1 Twin Digital VRM power phase design, ensuring high-performance computing with maximum stability. Featuring DDR5 memory support up to 7600 MHz (OC), four PCIe 4.0 x4 M.2 slots, PCIe 5.0 expansion, and 2.5GbE LAN with Wi-Fi 6E, this board is engineered for gamers and professionals alike. Its EZ-Latch Plus design simplifies M.2 and GPU installations, while Smart Fan 6 and advanced heatsinks ensure excellent thermal control. Customization options, RGB headers, and Q-Flash Plus for BIOS updates without CPU installation make it DIY-friendly and future-proof.
Features
-
Supports 14th/13th/12th Gen Intel® Core™ processors (LGA1700)
-
Twin 16+2+1 Phases Digital VRM with 60A DrMOS
-
4x DDR5 DIMMs, up to 7600 MHz (OC), 256 GB max capacity
-
4x PCIe 4.0 x4 M.2 connectors with Thermal Guard
-
PCIe 5.0 x16 Slot with Ultra Durable™ Armor
-
2.5GbE LAN and Wi-Fi 6E (802.11ax)
-
HDMI & DisplayPort with 4K support
-
USB-C®: Front (10Gb/s) & Rear (20Gb/s)
-
Smart Fan 6 with hybrid fan headers and FAN STOP
-
Q-Flash Plus: BIOS update without CPU/RAM/GPU
-
Solid Pin power connectors (24-pin & dual 8-pin CPU)
-
Multi-Key: Reset, RGB switch, Direct BIOS, Safe Mode
-
Durable 6-layer PCB with 2X copper for better thermal conductivity
Specifications
| CPU Support | Intel® 14th, 13th, 12th Gen Core™, Pentium® Gold, Celeron® (LGA1700) |
| Chipset | Intel® Z790 Express |
| Memory | 4×DDR5 DIMM slots, up to 256 GB, up to 7600 MHz (OC), Dual channel |
| Storage | 4×M.2 PCIe 4.0 x4, 6×SATA 6Gb/s, RAID 0/1/5/10 support |
| Expansion | 1×PCIe 5.0 x16, 1×PCIe 4.0 x4, 1×PCIe 3.0 x4 |
| Graphics Output | 1×HDMI 2.1 (4096×2160@60Hz), 1×DisplayPort 1.2 (4096×2304@60Hz) |
| Audio | Realtek® Audio CODEC, 7.1-channel HD Audio, S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN |
| Wireless | Wi-Fi 6E (Intel® AX210/AX211 or Realtek RTL8852CE), Bluetooth 5.3 |
| USB Ports | Rear: 1×USB-C® 20Gb/s, 2×USB 3.2 Gen2, 3×USB 3.2 Gen1, 4×USB 2.0; Front: USB-C® 10Gb/s, internal headers for USB 3.2 Gen1 & USB 2.0 |
| Internal Connectors | 24-pin ATX, 2×8-pin CPU, 4×M.2, 6×SATA, RGB/ARGB headers, Fan headers, USB headers |
| Cooling | Fully covered MOSFET heatsinks, 6mm heatpipe, 5W/mK thermal pad, Smart Fan 6 |
| BIOS | UEFI BIOS, Q-Flash, Q-Flash Plus, Smart Backup |
| Software | GIGABYTE Control Center, Norton Security, LAN Manager |
| Form Factor | ATX, 30.5cm x 24.4cm |
| OS Support | Windows 11/10 64-bit |
