Description

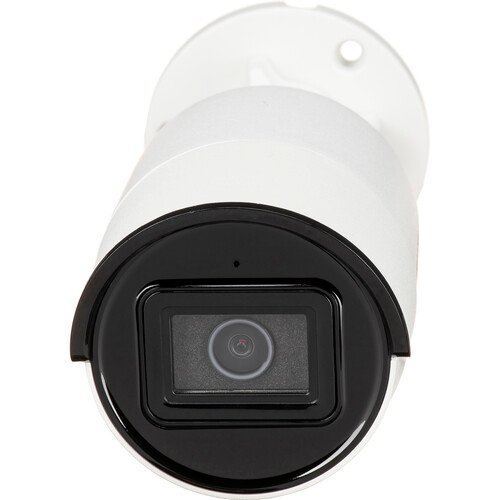

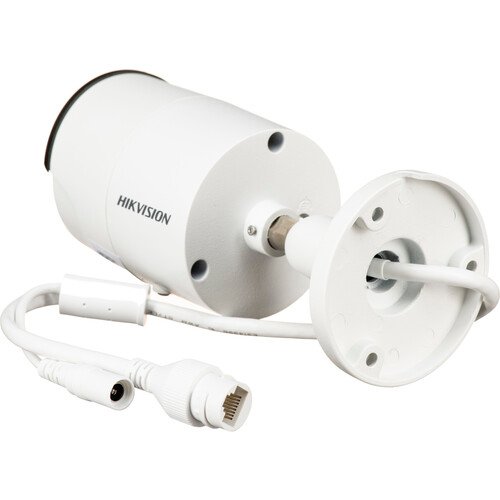

Securely monitor your surroundings with the DS-2CD1043G2-LIUF 4MP Outdoor Network Bullet Camera from Hikvision. This unit uses a 1/3″ progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 20 fps. IR LEDs provide up to 98′ of night vision, while a supplemental white light provides up to 98′ of illumination for recording full-color video in low-light conditions. The camera’s 4mm fixed lens delivers a 78° horizontal field of view. A built-in microphone enables the camera to pick up audio. A memory card slot supports microSD cards up to 512GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated enclosure for safe outdoor use.



FEATURES

  • 2560 x 1440 Resolution at 20 fps
  • IR LEDs for Night Vision up to 98′
  • White Light Illumination up to 98′
  • 4mm Fixed Lens
  • 78° Horizontal Field of View
  • Built-In Microphone
  • Supports microSD Cards up to 512GB
  • RJ45 Ethernet with PoE Technology
  • Complies with ONVIF Profiles G, S & T
  • IP67 Rated for Outdoor Use



SPECIFICATIONS

Key Specs
Sensor
4 MP 1/3″ CMOS
Focal Length
4mm
Lens Field of View
Horizontal: 78°
Vertical: 42°
Diagonal: 93°
Built-In Mic
Yes
Power Source
DC, PoE 802.3af (15 W)
Illumination
850 nm IR LEDs up to 98.4′ / 30 m
White LED up to 98.4′ / 30 m



Camera
Sensor
4 MP 1/3″ CMOS
Lens Mount
M12
Focal Length
4mm
Maximum Aperture
f/1.6
Lens Field of View
Horizontal: 78°
Vertical: 42°
Diagonal: 93°
IR Cut Filter
Mechanical
Day/Night
Yes
Minimum Illumination
Color: 0.005 Lux
B&W: 0 Lux
Shutter Speed
1/100000 to 1/3 Seconds
DORI Coverage
With 4mm Lens:
Detect: At 256′ / 78.0 m
Observe: At 101.7′ / 31.0 m
Recognize: At 49.2′ / 15.0 m
Identify: At 22.9′ / 7.0 m
Mobile App Compatible
Yes: Android & iOS
App Name: iVMS-4200



Video
Streaming Resolution
2560 x 1440 at 20 fps (8 Mb/s )
1920 x 1080 at 24 fps
Supported Video Compression
H.264, H.264+, H.265, H.265+, MJPEG
Multi-View Streaming
Yes, 2 Streams
Automatic Gain Control
Yes



Audio
1- or 2-Way Audio
One-Way
Audio Formats
AAC-LC, G.711, G.722.1, G.726, MP2L2
Built-In Mic
Yes



Networking
Security
Digest Authentication, MAC Address Filtering, Password Protection, Watermark
Supported Protocols
DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, TCP, UDP



System Integration
Application Programming Interface (API)
ONVIF Profiles G, S, & T, ISAPI, SDK
Analytics
Motion Detection (Human & Vehicle), Video Tampering Alarm, Exception
OS Compatibility
Windows
macOS



Sensors & Alarms
Event Trigger
Yes
Event Action
Recording, Notification, Alarm
Data Streaming
Yes
Alarm I/O
No



Hardware
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]
Internal Storage
No



Power
Power Source
DC, PoE 802.3af (15 W)
Power Consumption
DC: 5 W
PoE: 6.5 W



Environmental
Operating Temperature
-22 to 140°F / -30 to 60°C
Startup Temperature
-22 to 140°F / -30 to 60°C
Storage Temperature
-22 to 140°F / -30 to 60°C
Operating Humidity
0 to 95%



General
Inputs/Outputs
1x RJ45
1x Power
Illumination
850 nm IR LEDs up to 98.4′ / 30 m
White LED up to 98.4′ / 30 m
Video Management Software
iVMS-4200, Hik-Connect
Supported Languages
English
Ukrainian
Certifications
EN 50130-4, FCC (Part 15 Class B), ICES-003 Class A, RCM, REACH, RoHS, UL, WEEE, as per Manufacturer
Material of Construction
Metal (Unspecified Type), Plastic
Dimensions
H: 2.6 x W: 2.7 x L: 6.7″ / H: 66.0 x W: 69.1 x L: 170.8 mm
Weight
0.6 lb / 270 g



Packaging Info
Package Weight
1.02 lb
Box Dimensions (LxWxH)
8.6 x 5.2 x 4.7″
