Description

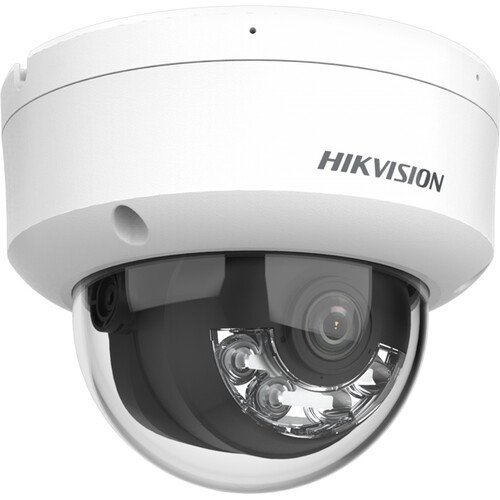

Securely monitor your surroundings with the DS-2CD1143G2-LIUF 4MP Outdoor Network Dome Camera from Hikvision. This unit uses a 1/3″ progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 20 fps. IR LEDs provide up to 98′ of night vision, while a supplemental white light provides up to 98′ of illumination for recording full-color video in low-light conditions. The camera’s 4mm fixed lens delivers a 78° horizontal field of view. A built-in microphone enables the camera to pick up audio. A memory card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK08-rated enclosure for safe outdoor use in areas at risk of vandalism.



FEATURES

  • 2560 x 1440 Resolution at 20 fps
  • IR LEDs for Night Vision up to 98′
  • White Light Illumination up to 98′
  • 4mm Fixed Lens
  • 78° Horizontal Field of View
  • Built-In Microphone
  • Supports microSD Cards up to 256GB
  • Complies with ONVIF Profiles G, S & T
  • IP67 Rated for Outdoor Use
  • IK08-Rated Vandal Resistance



SPECIFICATIONS

Key Specs
Focal Length
4mm
Illumination
850 nm IR LEDs up to 98.4′ / 30 m
White LED up to 98.4′ / 30 m



DORI Coverage
With 4mm Lens:
Detect: At 256′ / 78.0 m
Observe: At 101.7′ / 31.0 m
Recognize: At 49.2′ / 15.0 m
Identify: At 22.9′ / 7.0 m
Automatic Gain Control
Yes
Focal Length
4mm
Maximum Aperture
f/1.6



Video
Multi-View Streaming
Yes, 2 Streams
Camera Angle Adjustment
Horizontal: 0 to 355°
Vertical: 0 to 75°
Rotation: 0 to 355°



Networking
Security
Digest Authentication, MAC Address Filtering, Password Protection, Watermark
Supported Protocols
DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, TCP, UDP
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
1- or 2-Way Audio
One-Way
Audio Formats
AAC-LC, G.711, G.722.1, G.726, MP2L2
Internal Storage
No



Sensors & Alarms
Event Trigger
Yes
Event Action
Recording, Notification, Alarm
Data Streaming
Yes
Alarm I/O
No



Power
Startup Temperature
-22 to 140°F / -30 to 60°C



General
Illumination
850 nm IR LEDs up to 98.4′ / 30 m
White LED up to 98.4′ / 30 m
Supported Languages
English
Ukrainian



Packaging Info
Package Weight
1.44 lb
Box Dimensions (LxWxH)
6.2 x 6.1 x 6″
