The grandMA3 onPC command wing is a compact and cost-effective lighting control solution, ideal for small-scale productions or as a reliable backup for larger systems. Designed to work with a computer running grandMA3 onPC software, it provides 5 dual encoders, 40 playbacks, and control of up to 4,096 parameters. Connectivity options include 3 DMX ports, Ethernet, MIDI, timecode, and remote control interfaces.
FEATURES
- onPC wing for real-time control of 4 096 parameters in combination with grandMA3 onPC
- Command section similar to grandMA3 compact layout
- 29 rotary RGB backlit encoder
- 5 dual encoders
- 10 motorized 60 mm faders
- 40 separate playbacks
- 16 assignable x-keys
- 2 motorized A/B faders 100 mm
- 1 Level-Wheel
- Individually backlit and dimmable silent (clickless) keys
- Just connect via USB to any PC running grandMA3 onPC
SPECIFICATIONS
| Parameters | 4 096 (HTP/LTP) |
|---|---|
| Parameters Mode2 | not applicable (no Mode2) |
| Operating voltage/ Supply voltage | AC 100 – 240 V; 50/60 Hz |
| Power | max. 50 VA |
| Operating Temperature | 0 °C up to 40 °C / 32 °F up to 104 °F |
| Dimensions | 620 x 427 x 102 mm / 25 x 17 x 4 in (width x depth x height) |
| Net weight | 10 kg / 23 lbs |

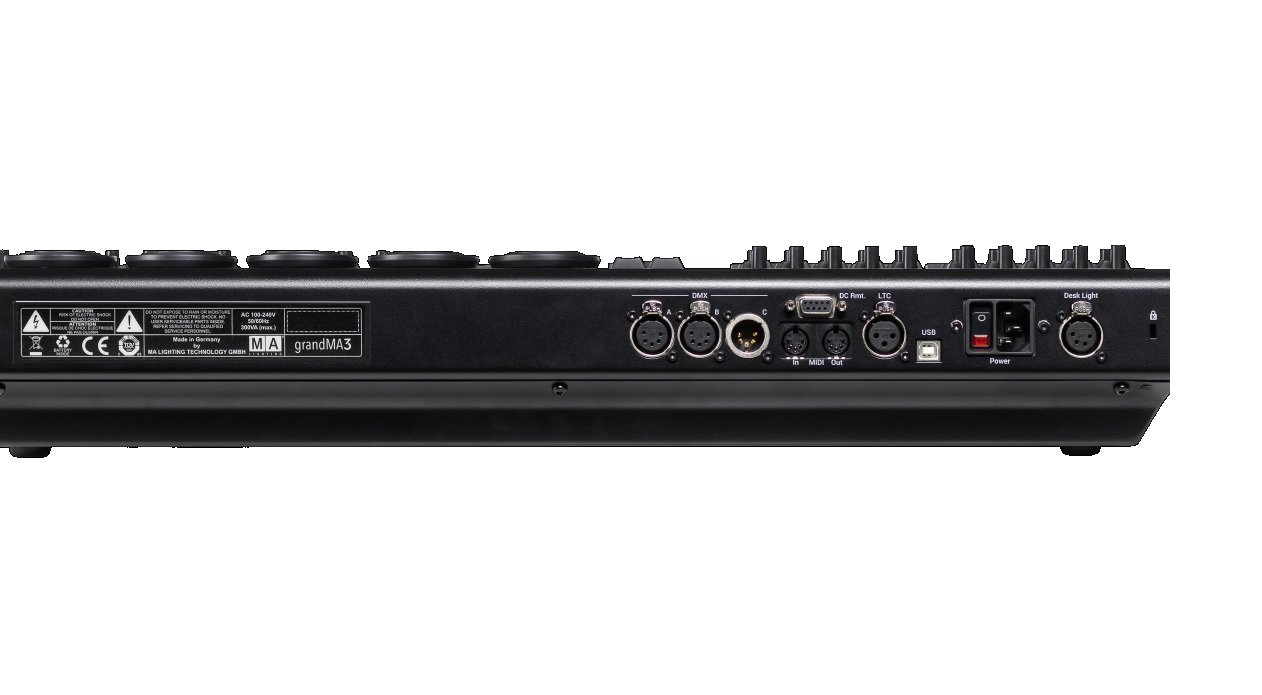

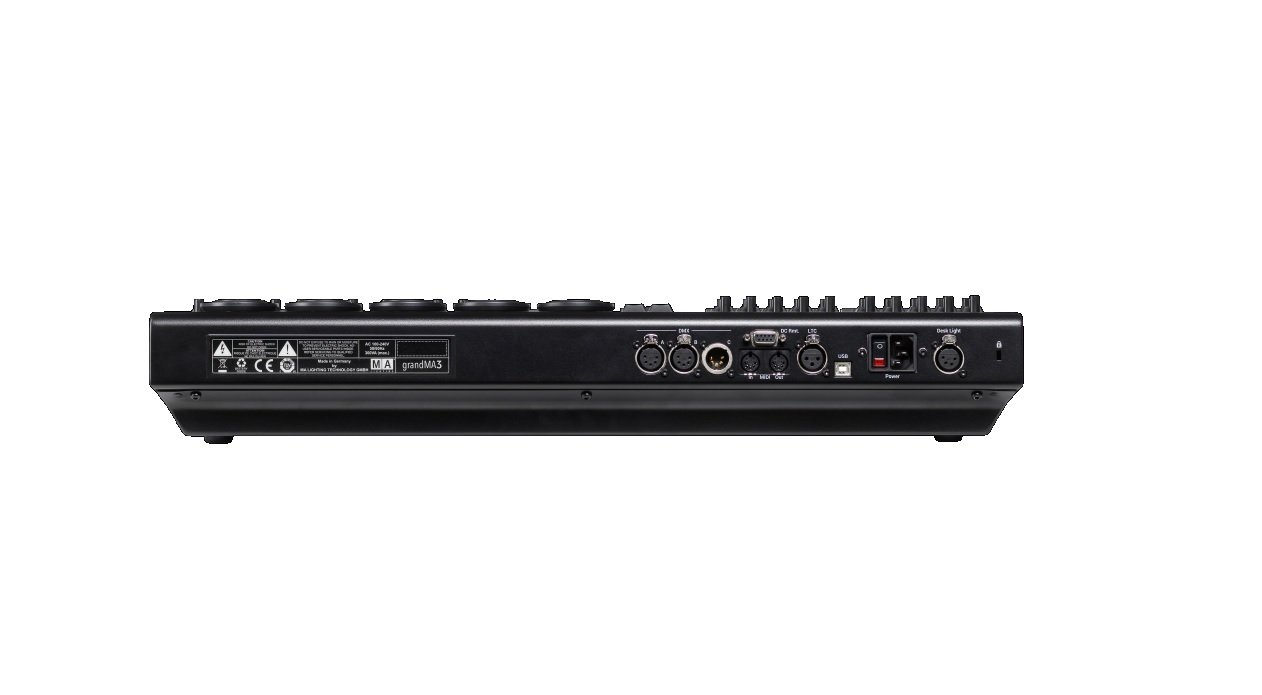

| Connectors | 1 x IEC-60320 C14 cord 2 x DMX512-A Out (5pin XLR female) 1 x DMX512-A In (5pin XLR male) 1 x MIDI In (5pin DIN female) 1 x MIDI Out (5pin DIN female) 1 x Linear Timecode (3pin XLR female) 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control 1 x USB 2.0 (type B) 1 x LED desk light (4pin XLR female) |
