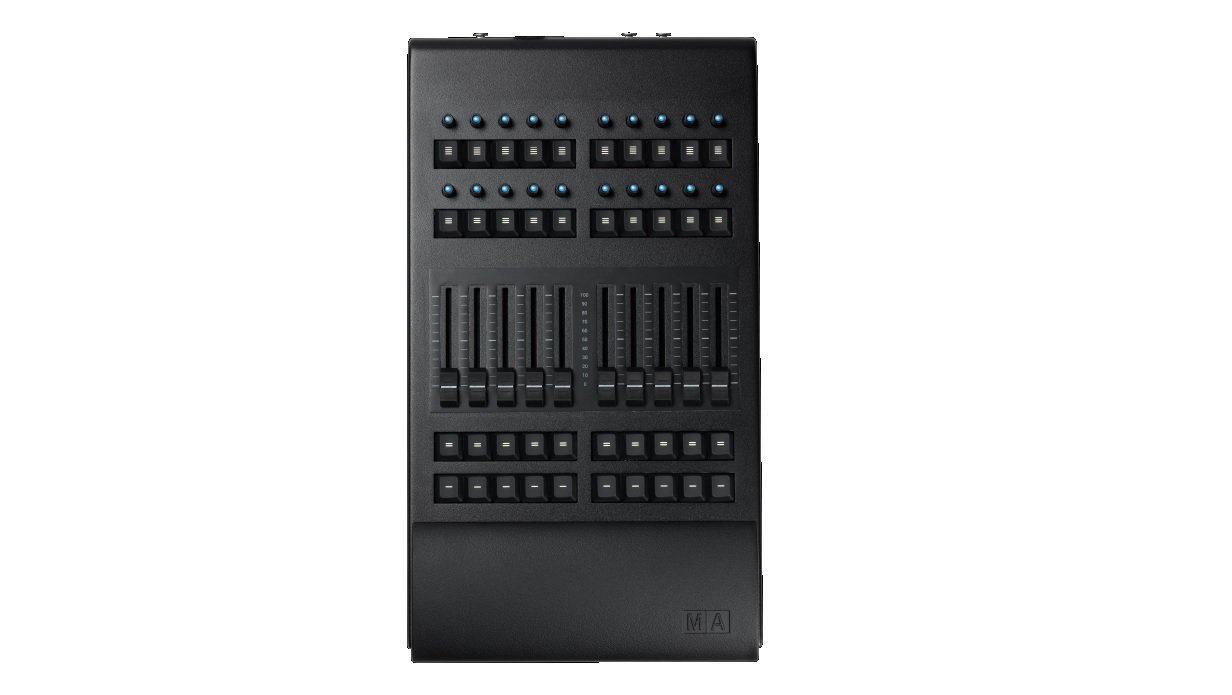

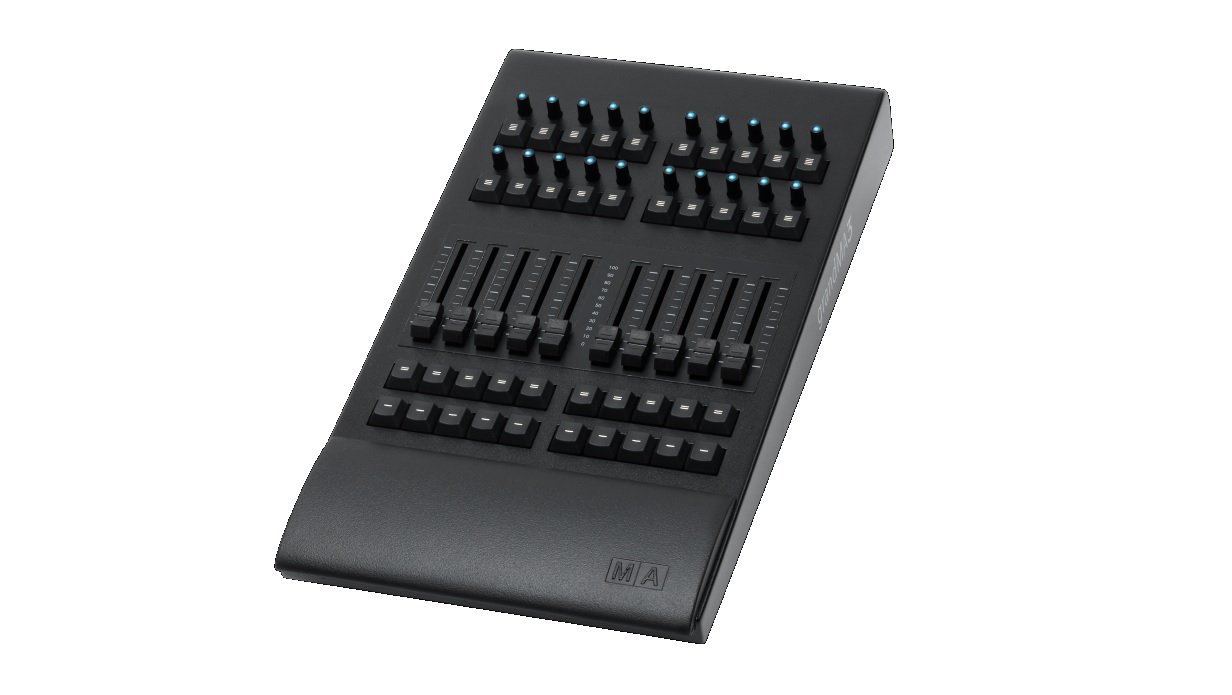

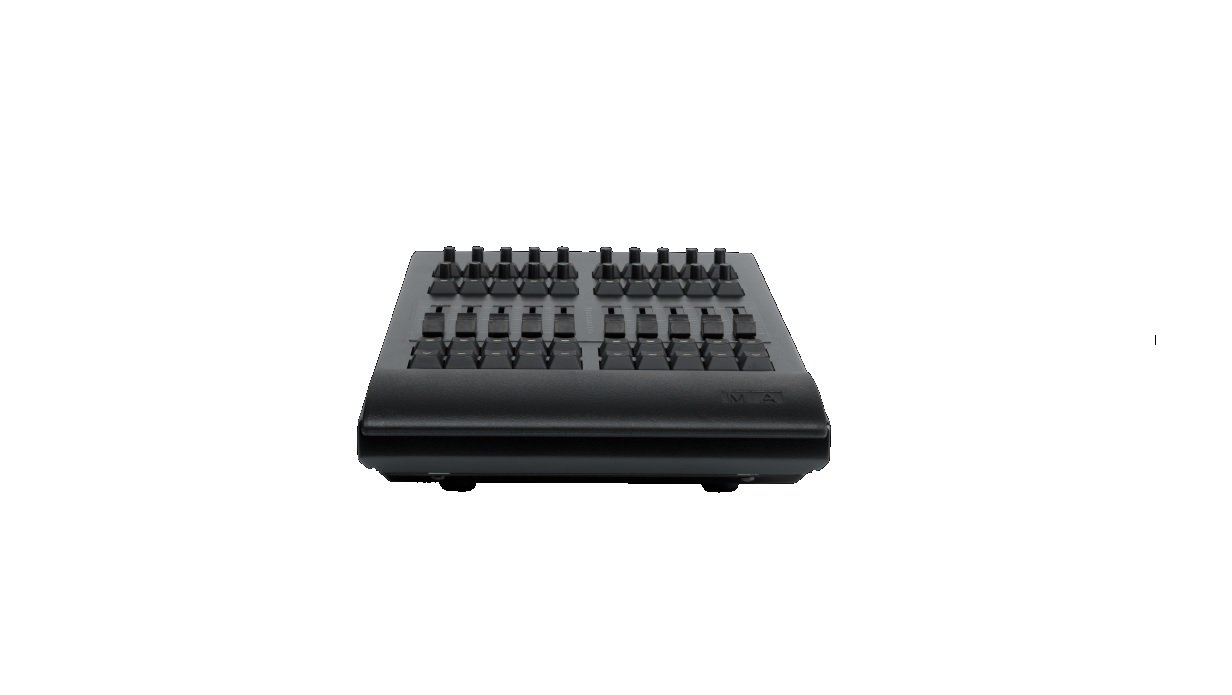

The grandMA3 onPC Fader Wing expands your grandMA3 onPC system with 40 additional playbacks, including 10 motorized faders and 20 rotary encoders. Connected via USB, it also provides 2 DMX outputs and supports control of up to 4,096 parameters.
FEATURES
- onPC wing for real-time control of 4 096 parameters in combination with grandMA3 onPC
- 2 DMX connectors
- 1 USB connector
- 20 rotary RGB backlit encoder
- 10 motorized 60 mm faders
- 40 separate playbacks
- Individually backlit and dimmable silent (clickless) keys
SPECIFICATIONS
| Parameters | 4 096 (HTP/LTP) |
|---|---|
| Parameters Mode2 | not applicable (no Mode2) |
| Operating voltage/ Supply voltage | AC 100 – 240 V; 50/60 Hz |
| Power | max. 50 VA |
| Operating Temperature | 0 °C up to 40 °C / 32 °F up to 104 °F |
| Dimensions | 240 x 427 x 102 mm / 10 x 17 x 4 in (width x depth x height) |
| Net weight | 5 kg / 11 lbs |

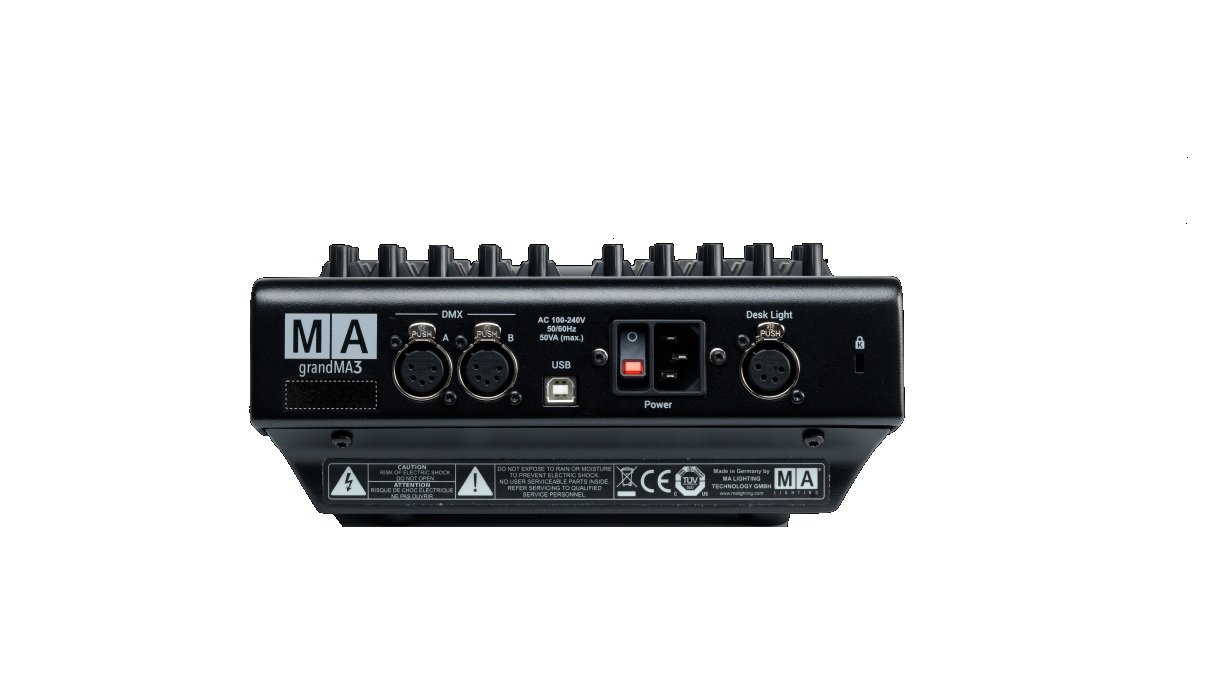

| Connectors | 1 x IEC-60320 C14 cord 2 x DMX512-A Out (5pin XLR female) 1 x USB 2.0 (type B) 1 x LED desk light (4pin XLR female) |
